BH-4S 4 in 1 Multi Gas Detector
BH-4S portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’life and avoid damage on the relevant equipments.
We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
- 32-bit built-in MCU, high reliability and self-adaptation ability.
- Full functions, easy operation.
- CSTN colorful LCD, more intuitionistic, abundant and clear indication.
- Compact design, easy carrying.
- High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

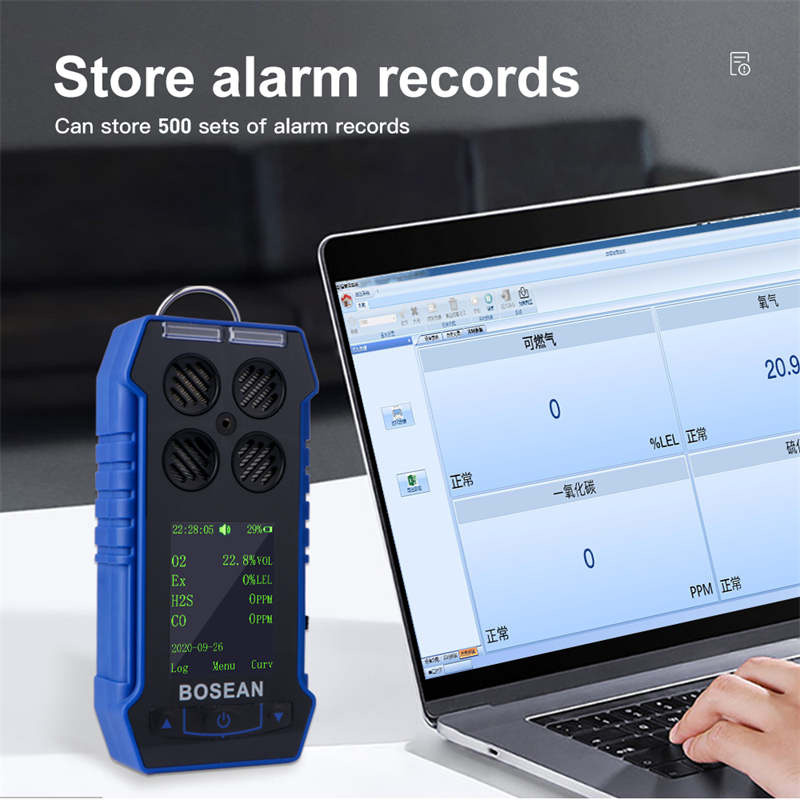

- 500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.
Specifications
| Gas sampling method | Natural diffusion |
| Detecting gas | Combustible gas, H2S, CO, O2 |
| Accuracy | ≦±5% F.S. |
| Response Time | ≦30s |
| Indication | LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage. |
| Working environment | -20℃～50℃ for toxic gases -40℃～70℃ for Ex ＜95%RH (no dew) |
| Power Source | DC3.7V Li-on battery, 1800mAh |
| Charging time | 6h~8h |
| Working time | ≧8h continuously (without alarming) |
| Gas Sensor Life | 2 years |
| Explosion-proof grade | Ex ib llC T4 Gb |
| Protection Grade | IP65 |
| Weight | Appr. 400g (with battery) |
| Dimensions | 130mm×67mm×30mm(L × W × H) |
