Feature

This product is a single-channel / dual-channel / four-way (4-20) mA / RS485 transmitter signal input intelligent control system developed by the company.
The product has high stability. High accuracy and high intelligence, the external control port is rich, the user can freely choose the type of the connected transmitter and the access port, and can perform on-site detection and alarm by simple setting.
The system has integrated sound and light alarms and provides a relay normally open control terminal.

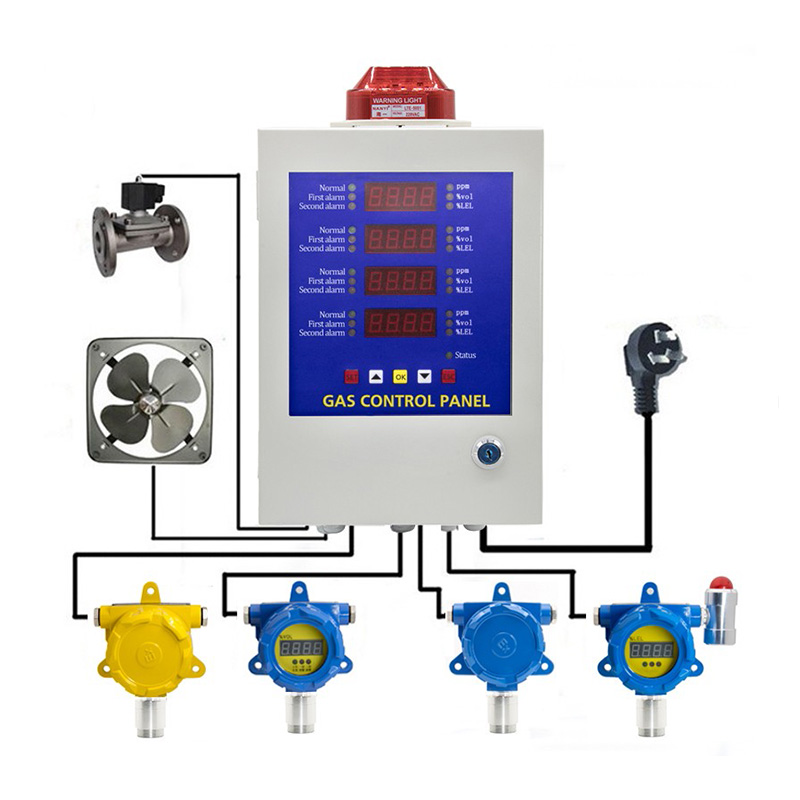

The system is widely used in applications where toxic and harmful gases need to be detected. When the index of a certain gas to be tested in the field exceeds or falls below the set standard, the system will perform a series of alarm actions, such as alarm, exhaust, tripping, etc.
Detection principle: Collect standard 4~20mA signal input or RS485 communication input (optional), analyze and display the current gas concentration of each channel, and operate related alarm signals, and transmit the information to the computer through RS485 bus.
Applicable objects: The system supports input signals of various standard detectors, such as gas detectors: carbon monoxide, hydrogen sulfide, sulfur dioxide, hydrogen, ammonia, oxygen, chlorine and combustible gases.

Product type	BH-50 Gas Control Panel
Channel	Single channel,two channels,four channels
Power supply	AC220V±10% 50Hz
Consumption	≦10W
Signal input	4~20mA and RS485
Single output	two lines RS485(MODBUS)
Working temperature	-10℃~50℃
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Installation method	Wall-mounted
Dimensions	380x210x80mm(L×W×H)
