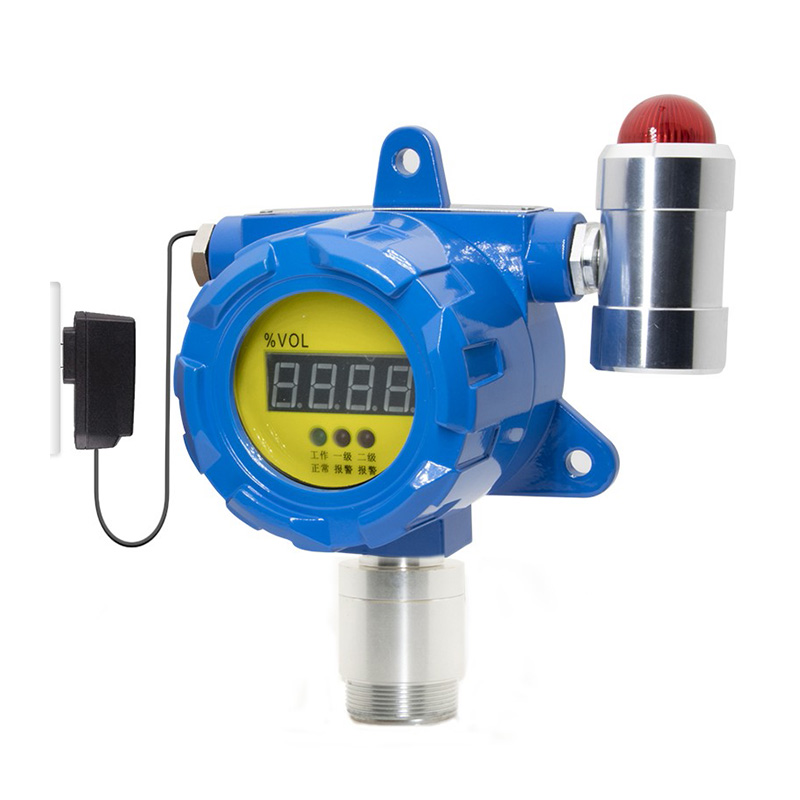

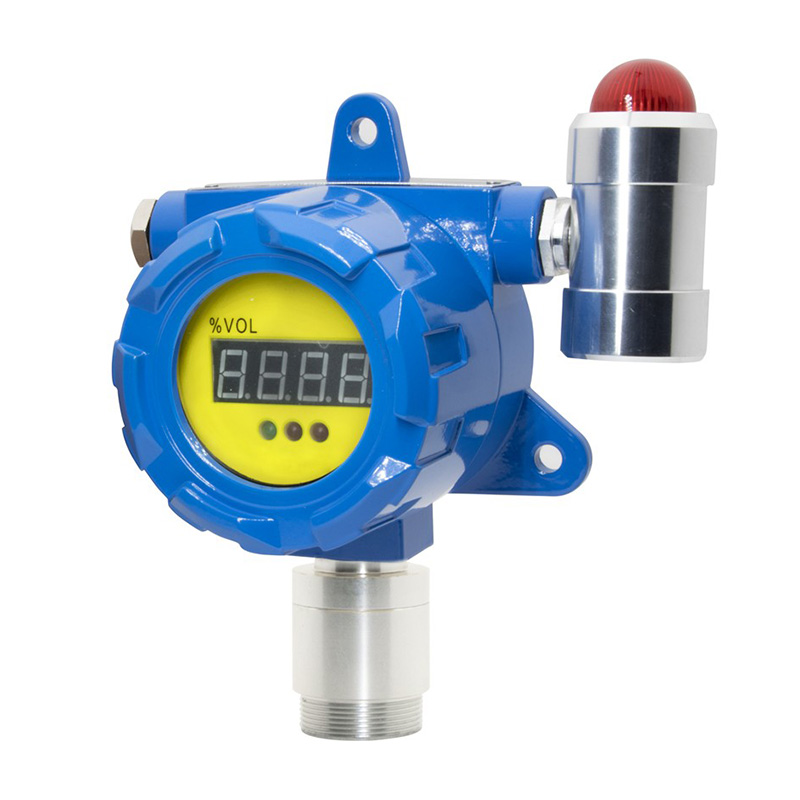

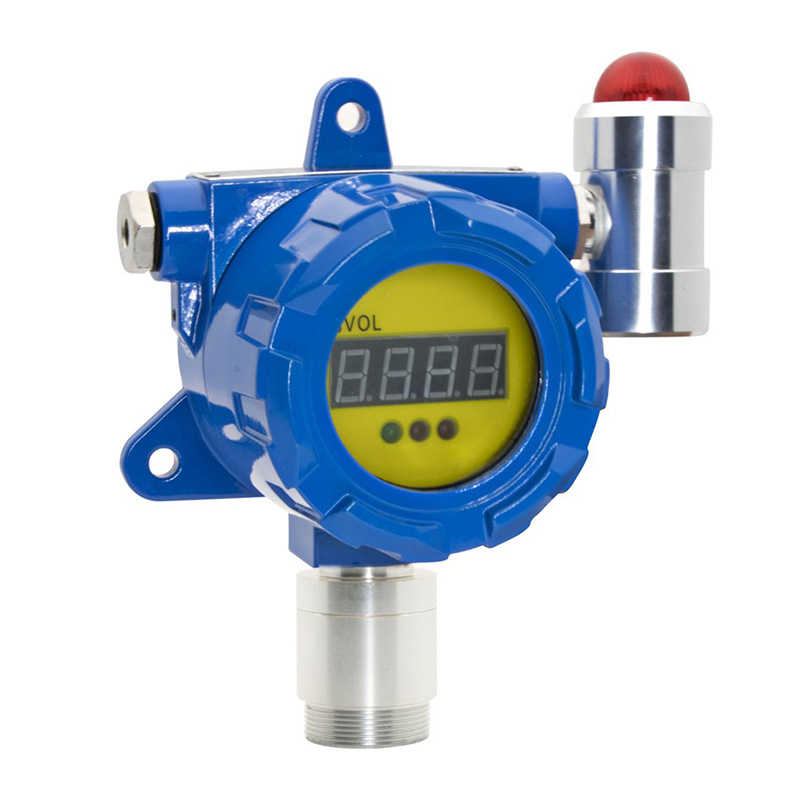

BH-60 Fixed Gas Detector With Display

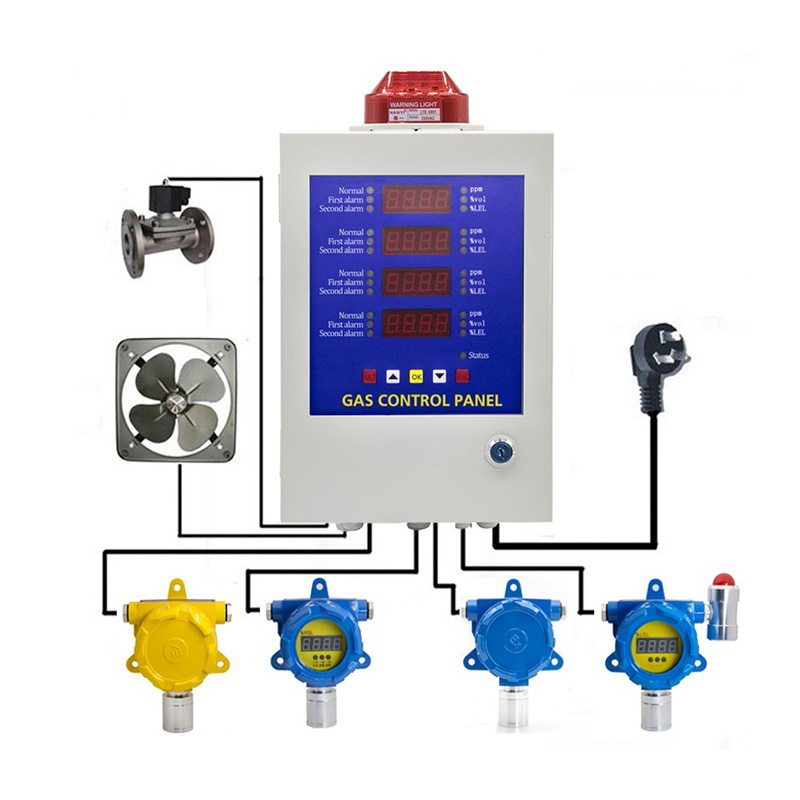

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.
We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.
Specifications
| Product type | BH-60 fixed gas detector/transmitter |
| Explosion proof grade | Ex db IIC T6 Gb |
| Response time | ≦30S |
| Power supply | DC24V±10% |
| Working temperature | -20℃～50℃ |
| Output current | 4-20mA |
| Working humidity | 0-95%RH |
| Contact output | Free contact output, max power 1kW |
| Single input | 4~20mA and RS485 |
| Installation method | Wall-mounted |
| Shell material | Aluminum |
| Dimensions | 190x150x95mm（L×W×H） |
TAG: BH-60 Bosean Fixed gas detector lpg detector toxic gas detector
