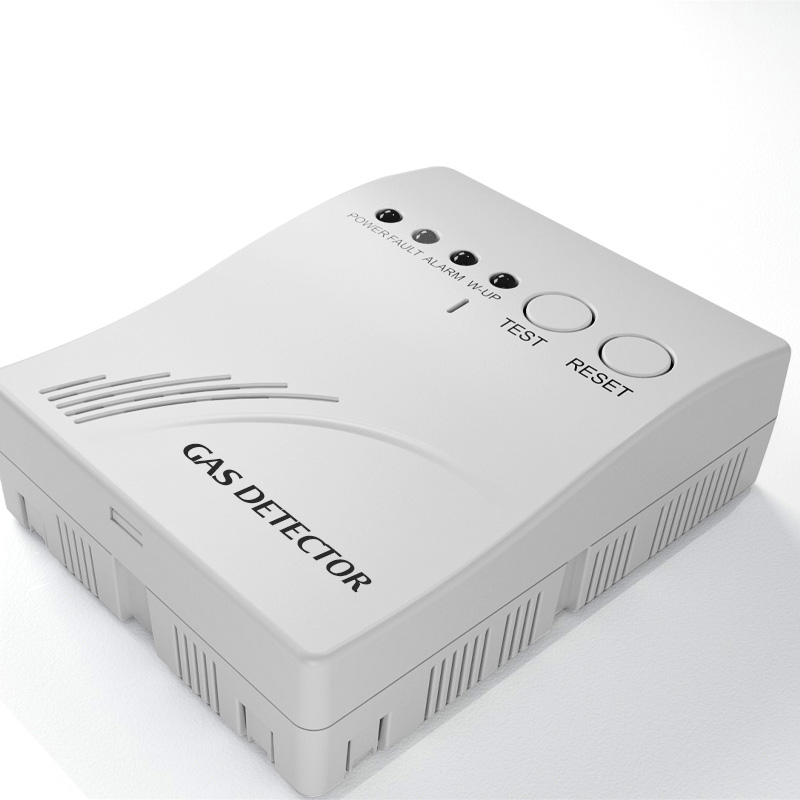

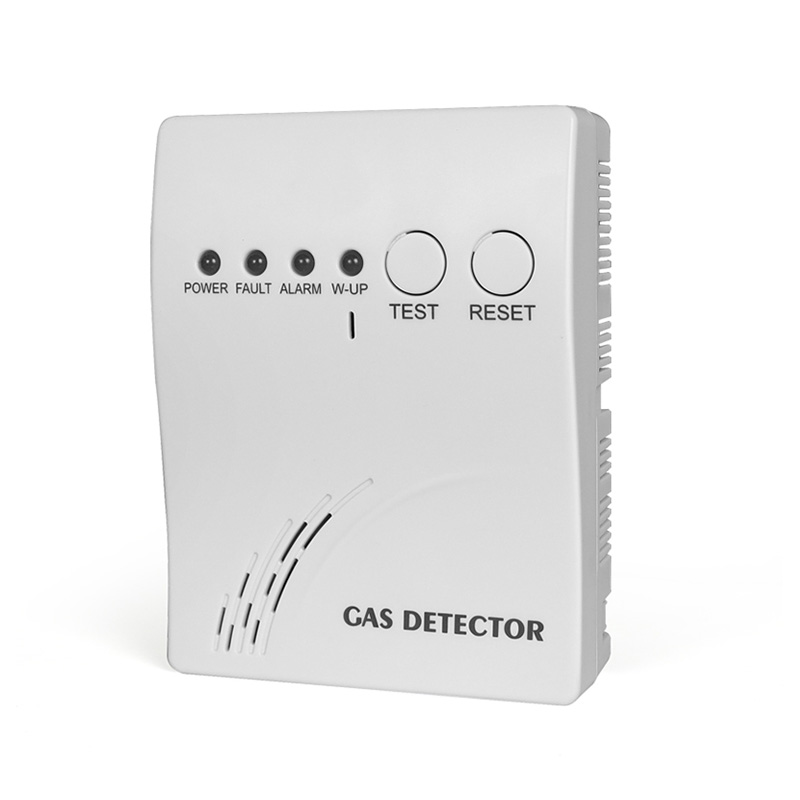

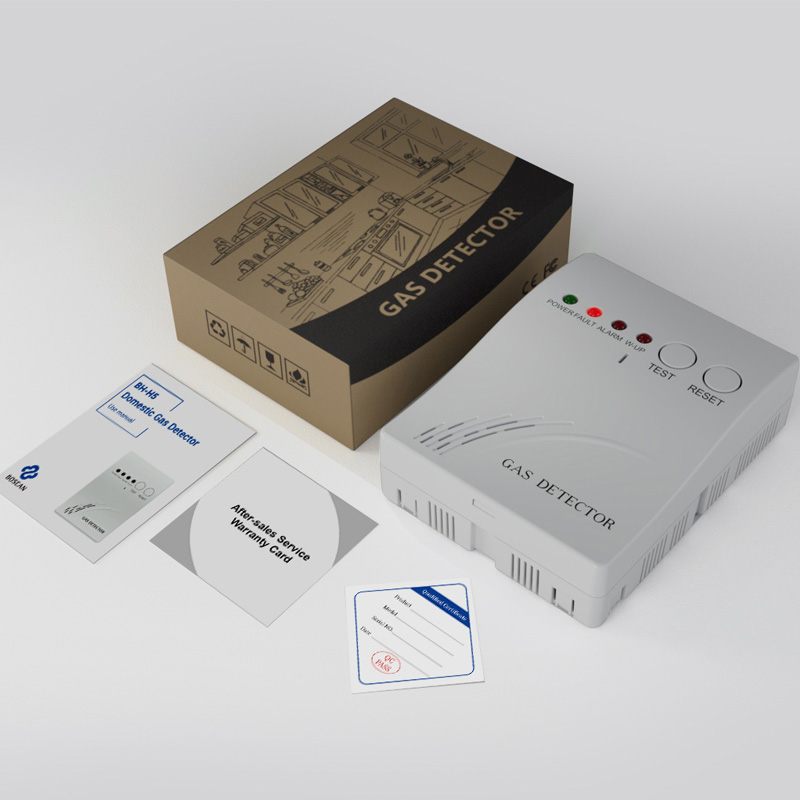

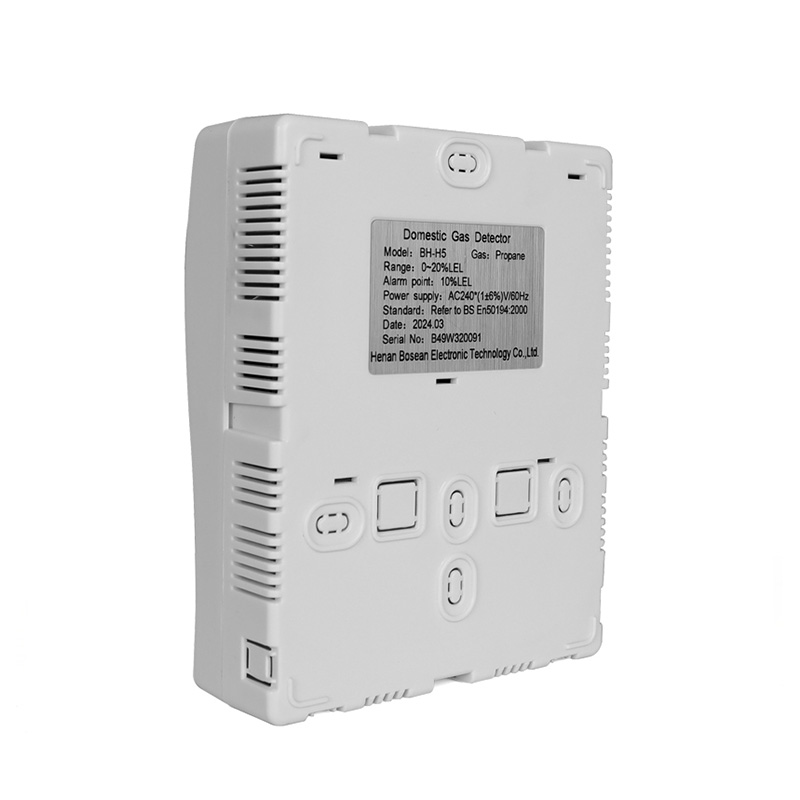

BH-H5 Domestic Gas Alarm

BH-H5 household combustible gas detector (hereinafter referred to as the detector) is made of high-quality gas sensors, combined with advanced electronic technology and sophisticated craftsmanship; it is widely used in homes, hotels, apartments and other places; once the detecting gas concentration reaches the pre-set alarm point, the detector will send out audible and
visual alarm signals to remind you to take effective action immediately to avoid fires, explosions and other accidents.

We provide gas detector OEM/ODM service.

Free calibration
Lifetime maintenance
1-year warranty

Send E-mail Get a Quote Download

Feature

Fix the appliance on the wall at a horizontal distance as 2~4m from the cooker or gas source;
The vertical location of the appliance should be decided according to the type of gas sort:
LPG:Fix it within 0.3 meters above the ground;
Natural Gas:Fix it within 0.3 meters below the Roof
Such location should be avoided:
Near the windows or passage with strong wind,
Water fog and drop or such moist place；
Easy polluted or high tem environment near Oven,
Covered by other things.

Specifications

Model	BH-H5
Range	0~20%LEL
Gas	Propane
sensor	semiconductor
Sensor mounting mode	welding type
Detection method	Natural diffusion
Alarm point	10%LEL
Warming time	130s ± 10s
Response time	(T9o)≤30s
Power supply	AC110*(1±6%)V/60HZ
Consumption	<4w
Alarm mode	Sound and light alarm
Alarm sound	≥75dB
Operating environment	-10℃~55℃
temperature	-10℃-55℃
0perating environment humidity	≤95%RH Indoor use type
Atmospheric pressure	86kPa~106kPa
sensor life	5 years(under normal environmental conditions)
Protection grade	IP42
Output	1AC110V active output,1group normalopen/normal close free contact output
Remark	These two output can be acted at the sametime
Weight	210g
Dimensions	115mm×88mmx37mm LxWxH
Standard	Refer to BS En50194:2000
