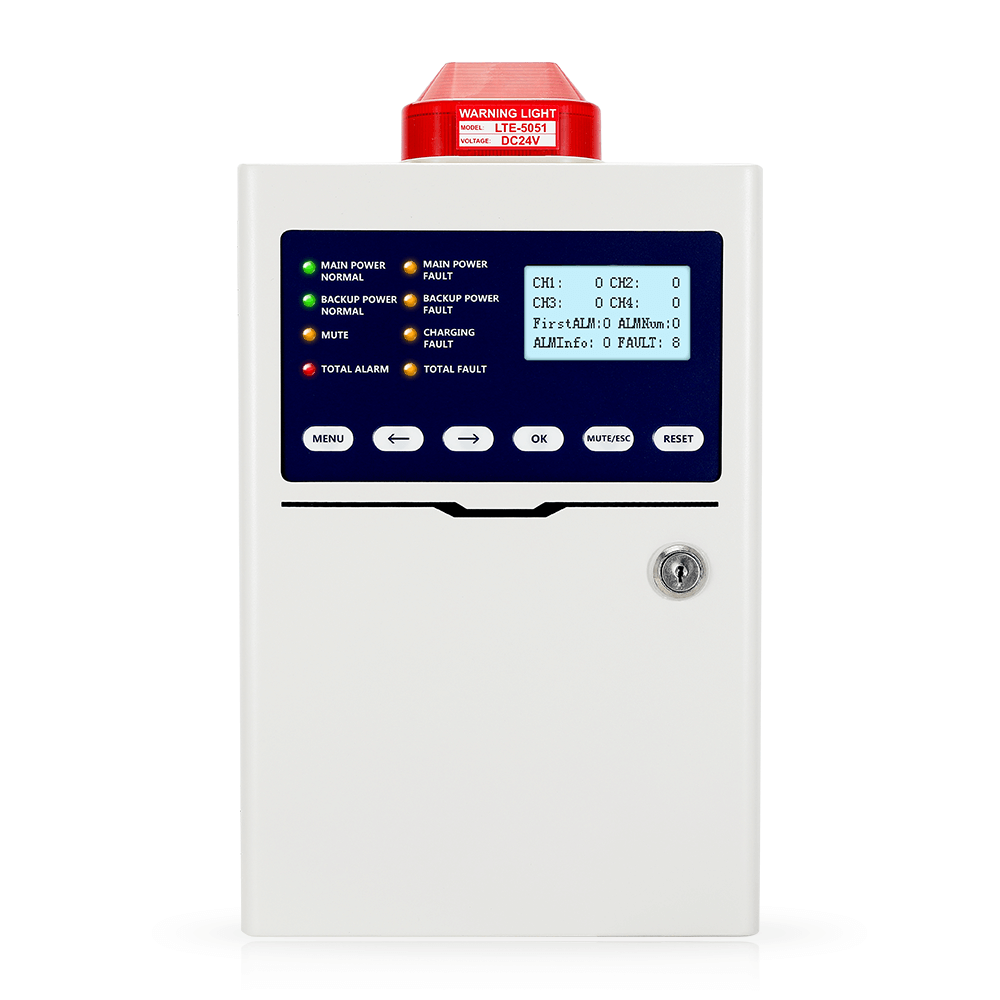

BH-KZ101 Gas Controller

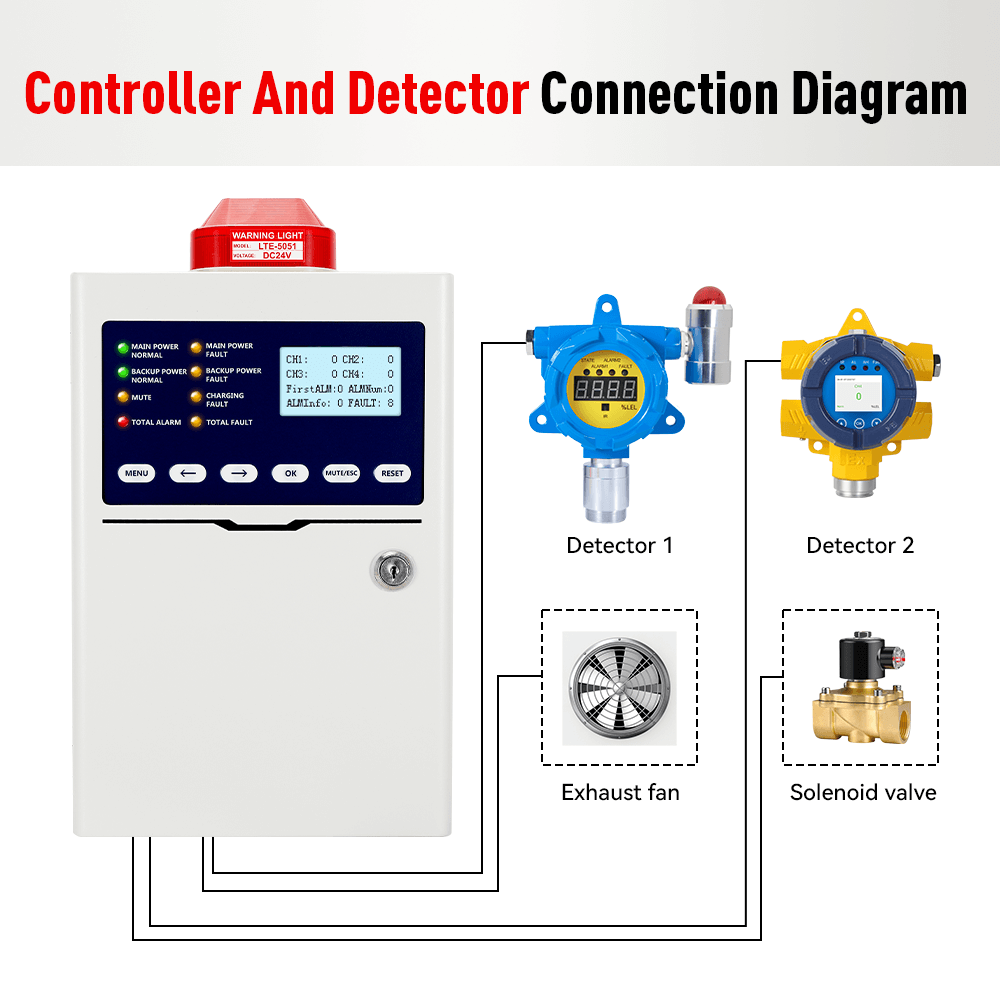

The BH-KZ101 gas control panel is designed for wall-mounted installation and can connect to 4-20 mA detectors, as well as RS485 detectors powered by 24 VDC. This system is designed to detectand monitor combustible gas concentrations on-site. When the gas level exceeds the preset alarm setpoints, the relays will automatically activate. This activation will trigger connected devices such as alarms and fans. Please note that the controller is not explosion-proof and must be installed in a safe area.
- Free calibration
- Lifetime maintenance
- 1-year warranty

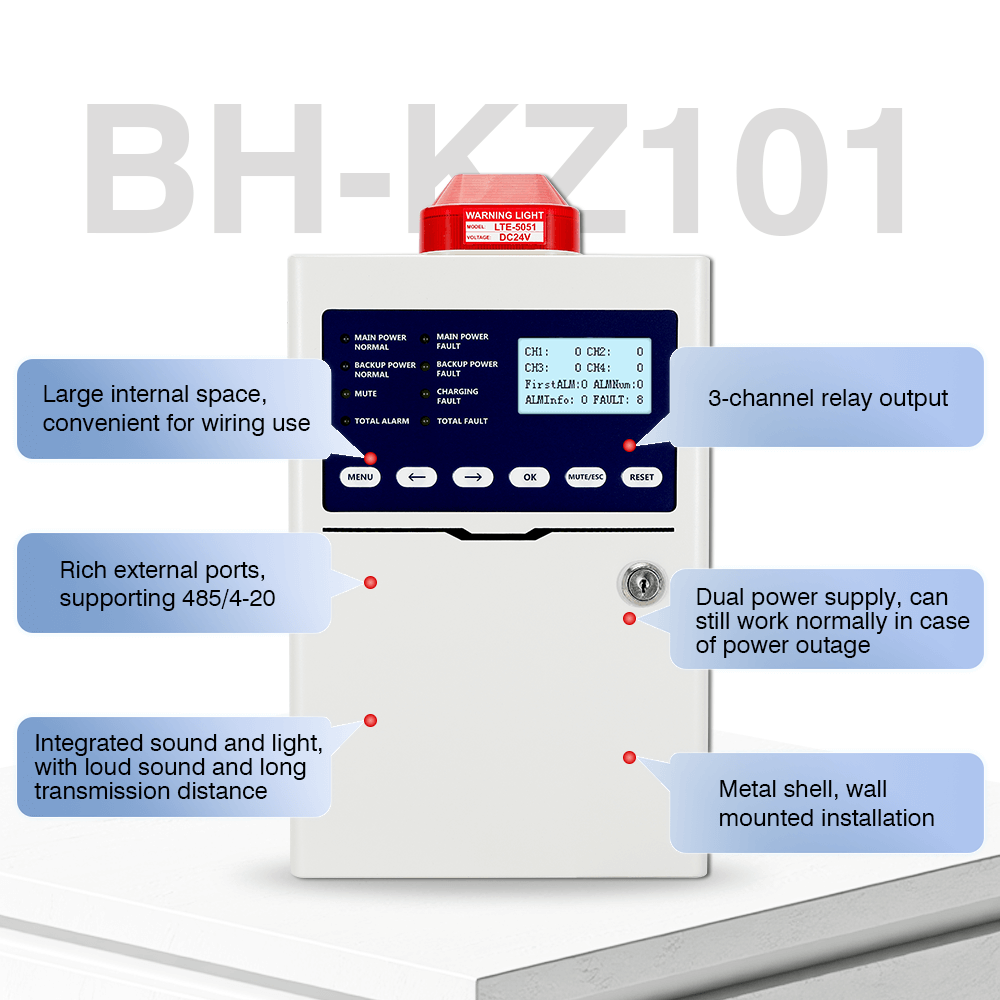

Feature
- Three-channel relay output
- Integrated sound and light, with loud sound and long transmission distance
- Rich external ports, supporting 485/4-20
- Large internal space,convenient for wiring use

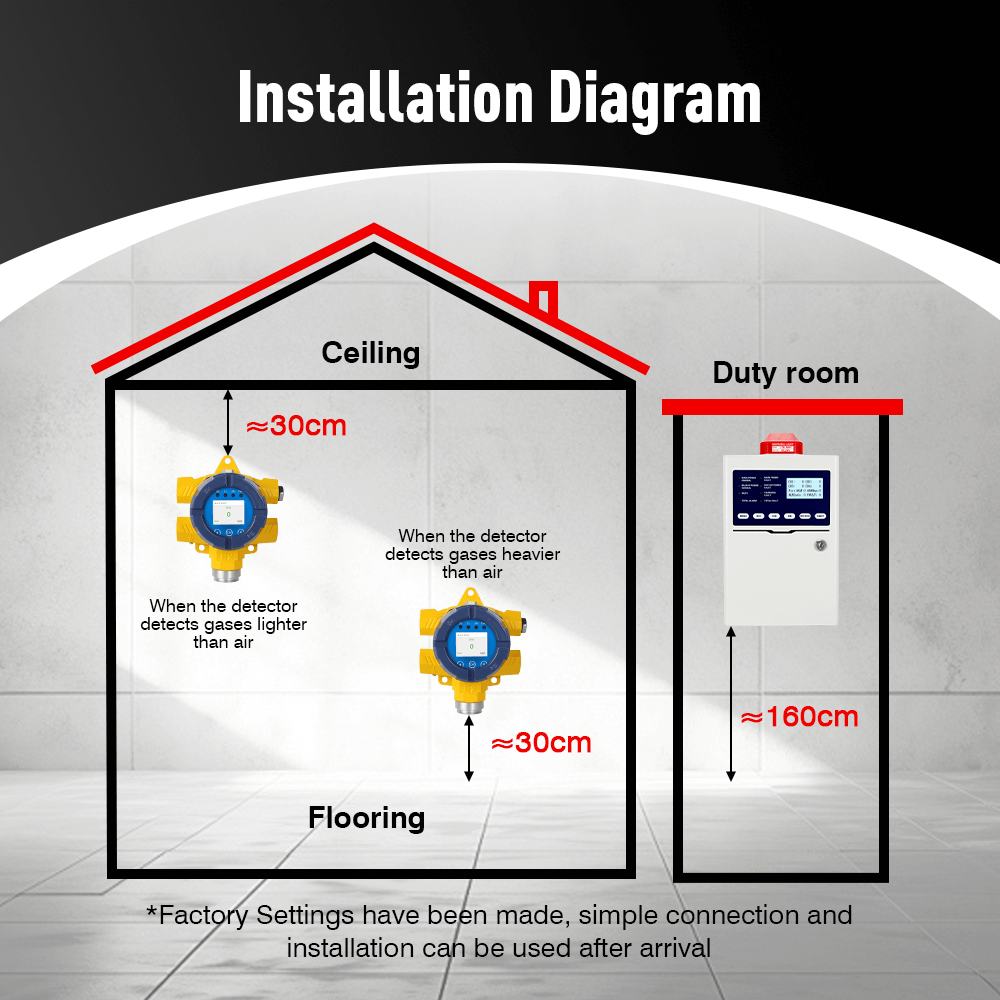

- Metal shell, wall mounted installation
- Dual power supply, can still work normally in case of power outage
Specifications
| Alarm Method | Visual and Audible |
| Display | LCD display and LED indicator |
| Input Signal | 4-20mA; RS485 |
| Working Environment | Temperature:0°C~40°C Humidity: ≤95%RH no dew. |
| Communiction Protocol | RS485,Support MODBUS,Orena |
| Voltage Output | DC24V±6V |
| Power Consumption | ≤25W |
| Power Requirements |
AC220V±15% 50/60Hz; Operating current ≤1.2A；
Backup battery: lithium battery(18.5V 2000mAh);
Charge current≤0.5A
|
| Relay Output | 3 relay outputs; Capacitance:10A/250VAC; 10A30VDC |
| Weight Size | About 2.9kg ; 310*210*80 (L*W*H) |
