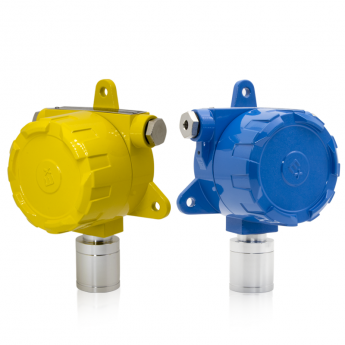

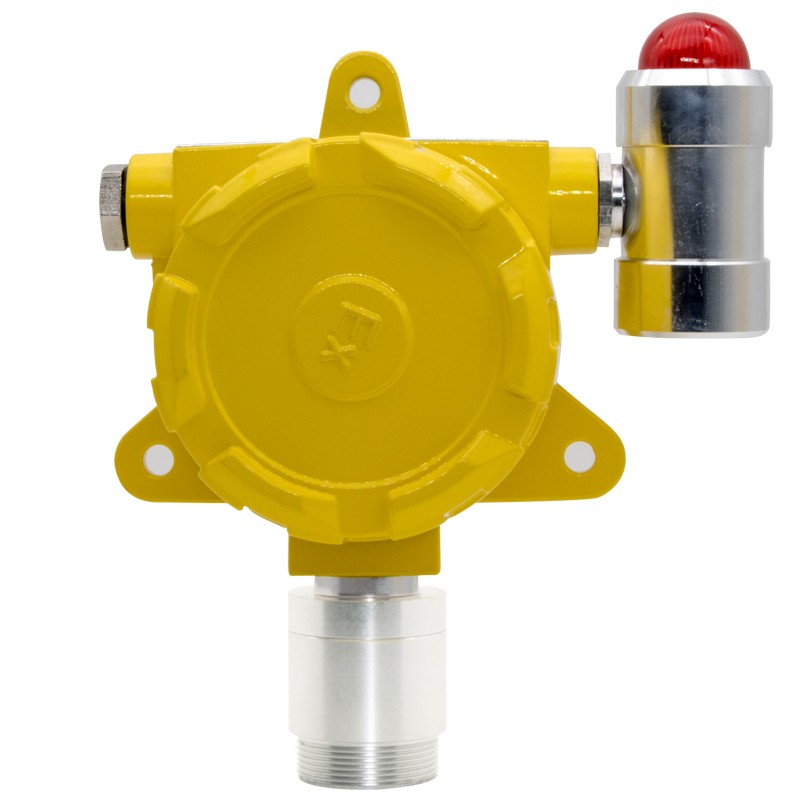

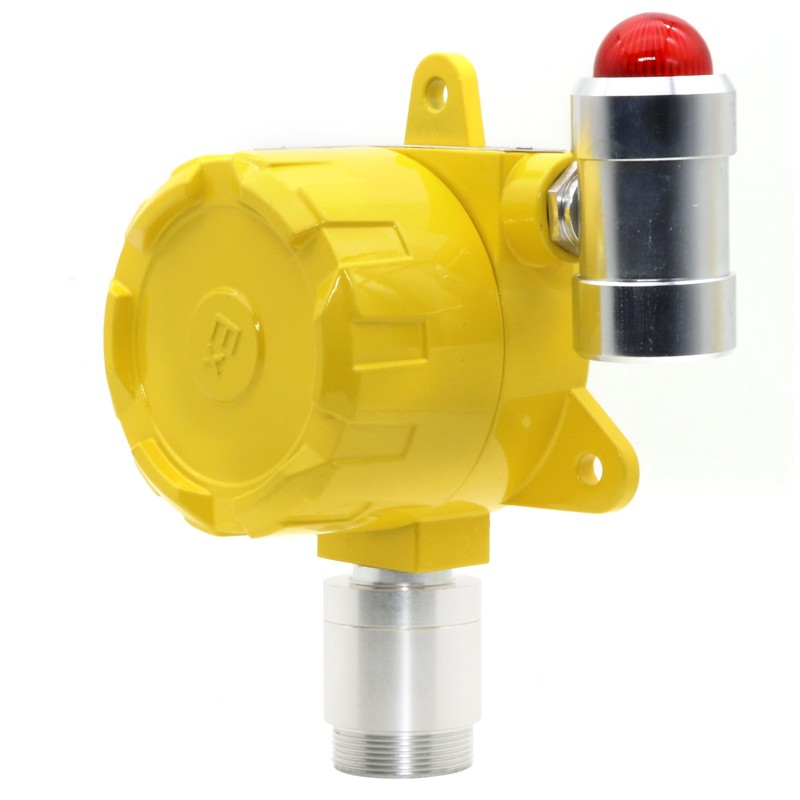

BH-60 Fixed Gas Detector

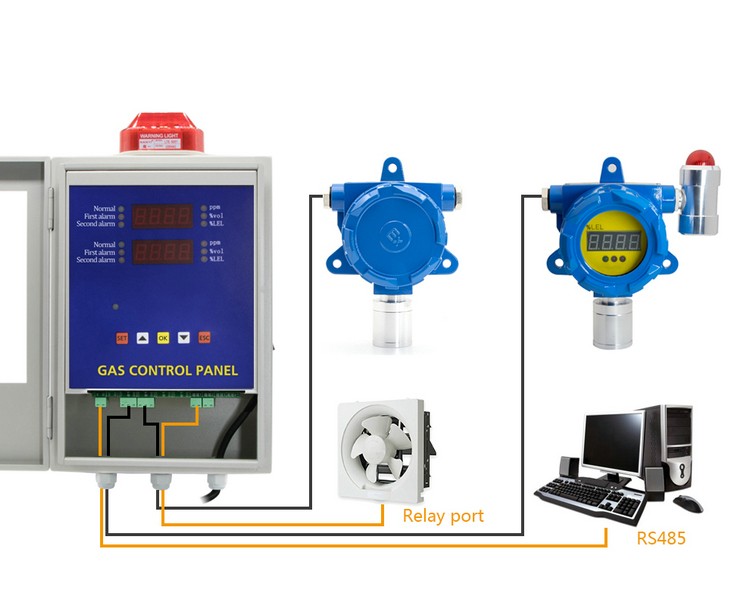

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists. We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- Uses advanced micro-power technology sensors.
- 4-20mA standard signal output.
- High sensitivity
- Easy to operate and can perform on-site monitoring and alarm through simple settings.
Specifications
| Gas Detected | Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF, etc |
| Detection principle | catalytic or electrochemical or PID's or infrared principles |
| Sampling Method | wall, pipeline, flow-through (with the monitoring of the environment-related) |
| Resolution | 1%LEL, 0.1ppm, 1ppm, 0.01%vol |
| Precision | ＜5% F.S. |
| Response Time | ≦30S |
| Recovery Time | ≦10S |
| Repeatability | ≦±1% |
| Linearity error | ≦±1% |
| Zero shift | ≦±1% (FS / year) |
| Display Technology | Display high brightness LED display |
| Connection mode | G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm |
| Working voltage | DC 24V |
| Working temperature | -20℃-55℃ |
| Explosion-Proof | Ex db IIC T6 Gb |
| Dimensions | 190×150×95mm |
| Cable requirement |
4-20mA, RVVP, 3-line, ≧1.5 mm2 Modbus, RVVP, 4-line, ≧1.5 mm2 |
TAG: BH-60 co gas detector Fixed gas detector h2s gas detector
