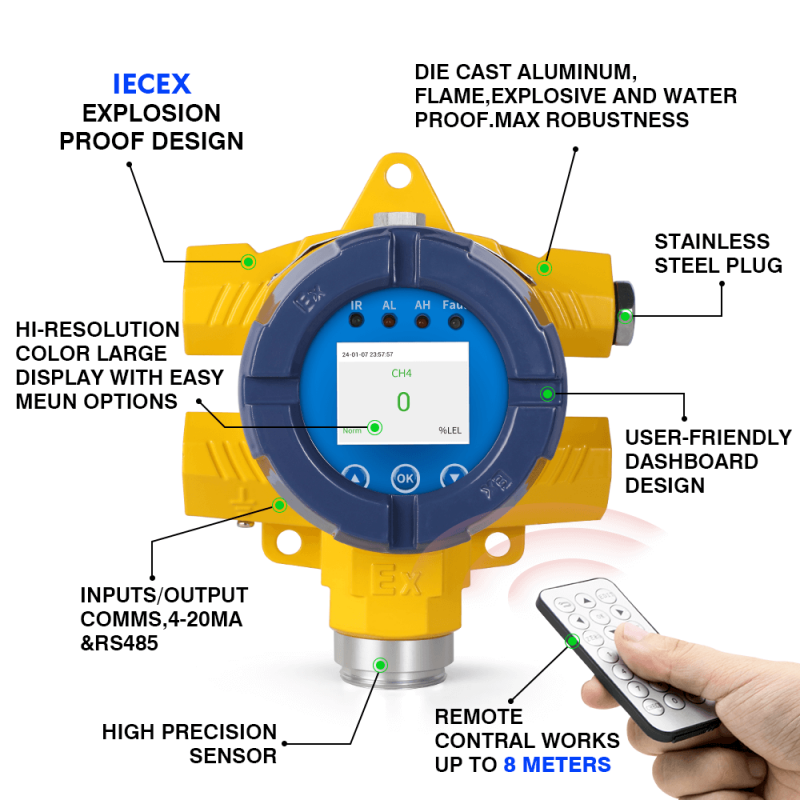

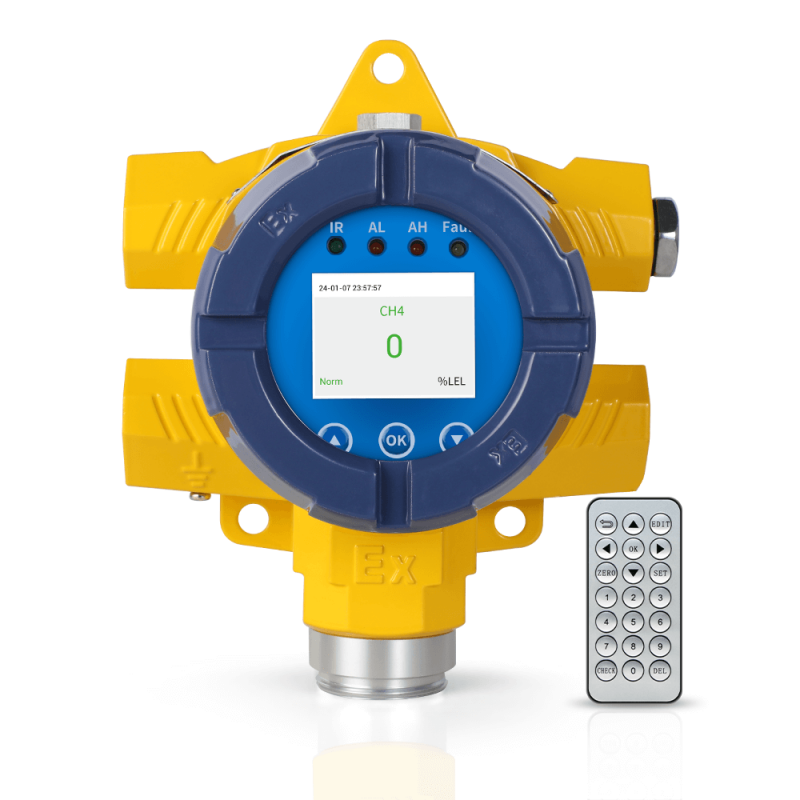

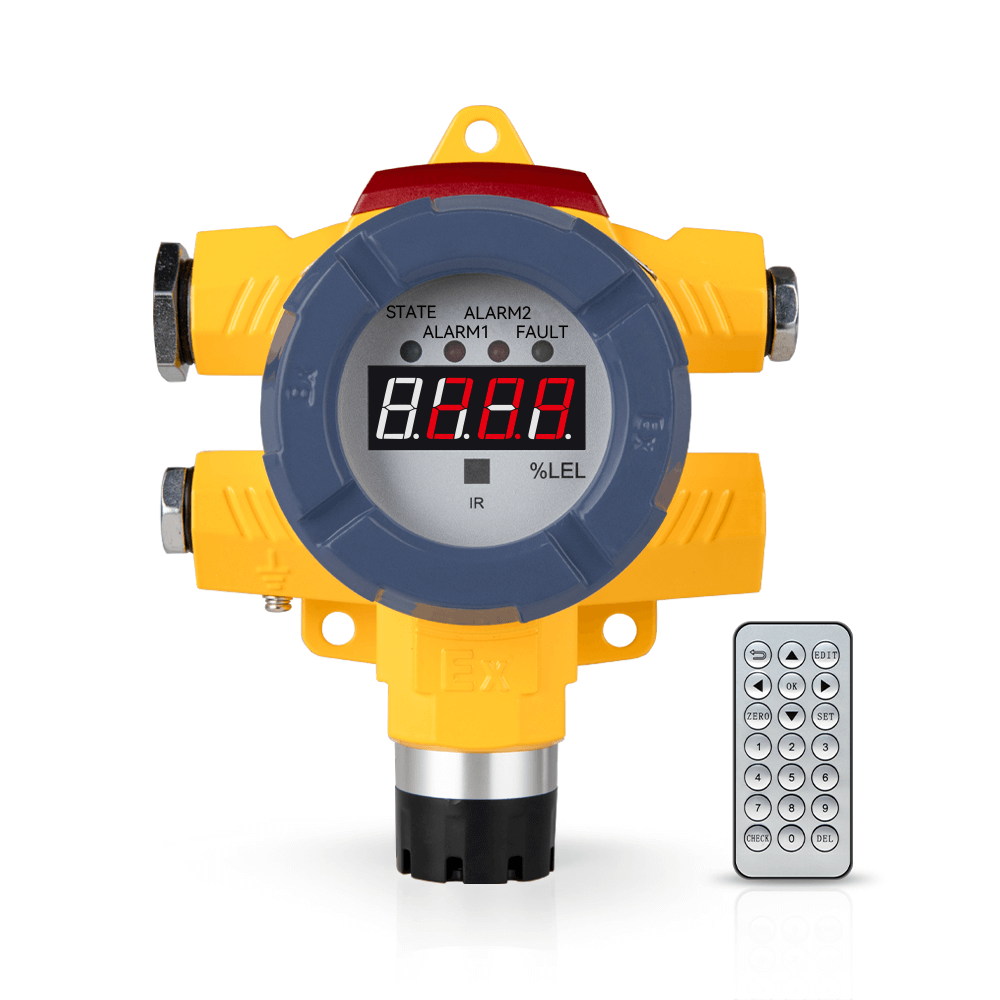

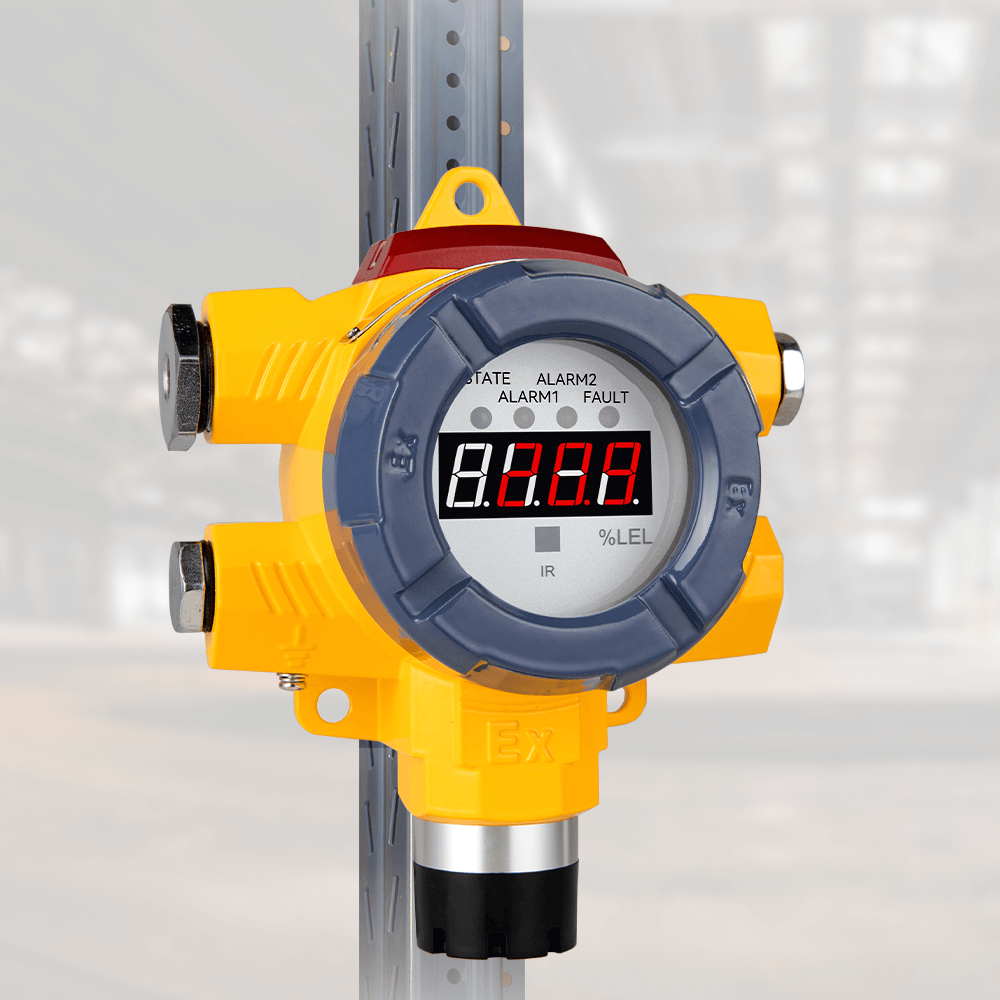

GTYQ-Z60 Fixed Gas Detector
GTYQ-Z60 fixed gas detector is an intelligent detector designed with advanced integrated circuit technology and standard intelligent technology. The detector adopts natural diffusion method to sample gas and uses high-quality gas sensor modules. We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty

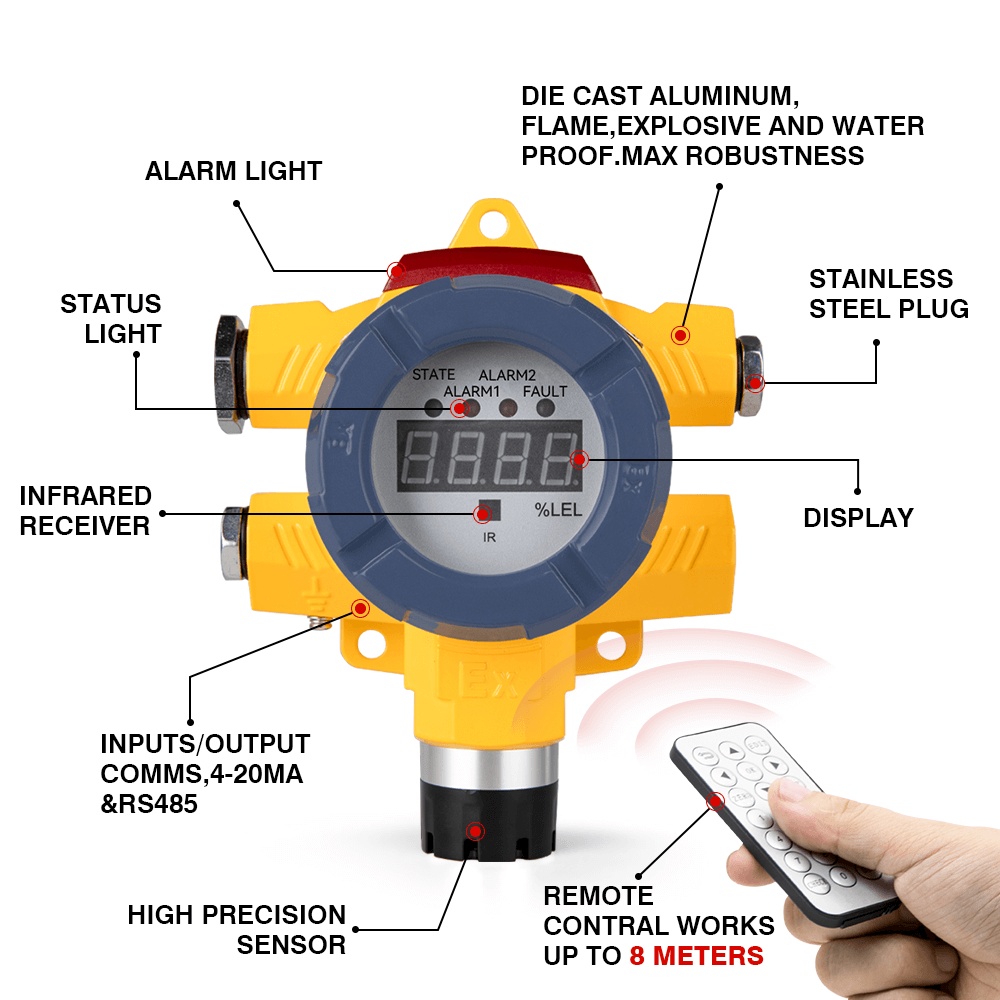

Feature
- High Sensitivity and Long Life: The GTYQ-Z60 is equipped with advanced sensors that provide high sensitivity for detecting even low concentrations of gas. Its durable design ensures long-term use, reducing the need for frequent replacements.
- Low Drift and Reliable Performance: Engineered to minimize drift, this gas detector maintains accuracy and stability, making it a dependable choice for continuous monitoring.
- Self-Check of Sensor Fault: Built-in self-check functionality allows the GTYQ-Z60 to automatically detect sensor faults,ensuring continuous, reliable operation without unexpected downtime.
- LED Display: The easy-to-read LED display provides clear and immediate information on gas levels, ensuring prompt response and decision-making in critical situations.
- Temperature Compensation: Featuring temperature compensation, the GTYQ-Z60 maintains its accuracy across varying environmental conditions, ensuring reliable readings no matter the climate.

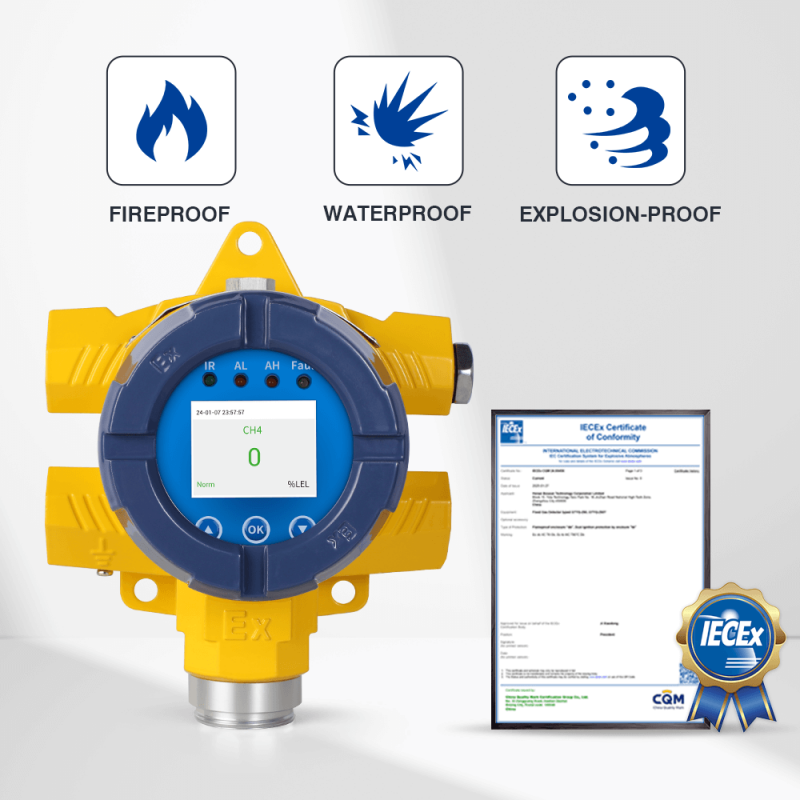

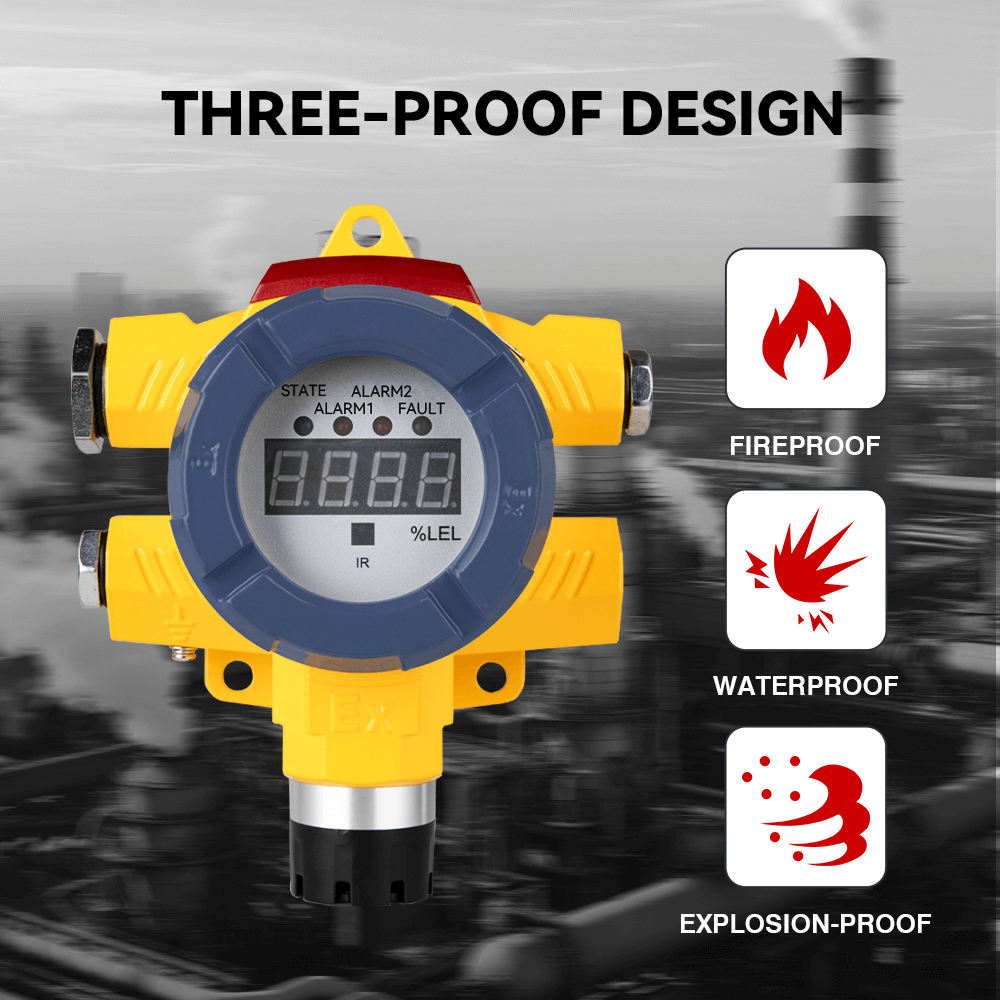

- Explosion Proof Design: Designed with safety in mind, the Z60 boasts an explosion-proof housing, making it suitable for use in hazardous locations.

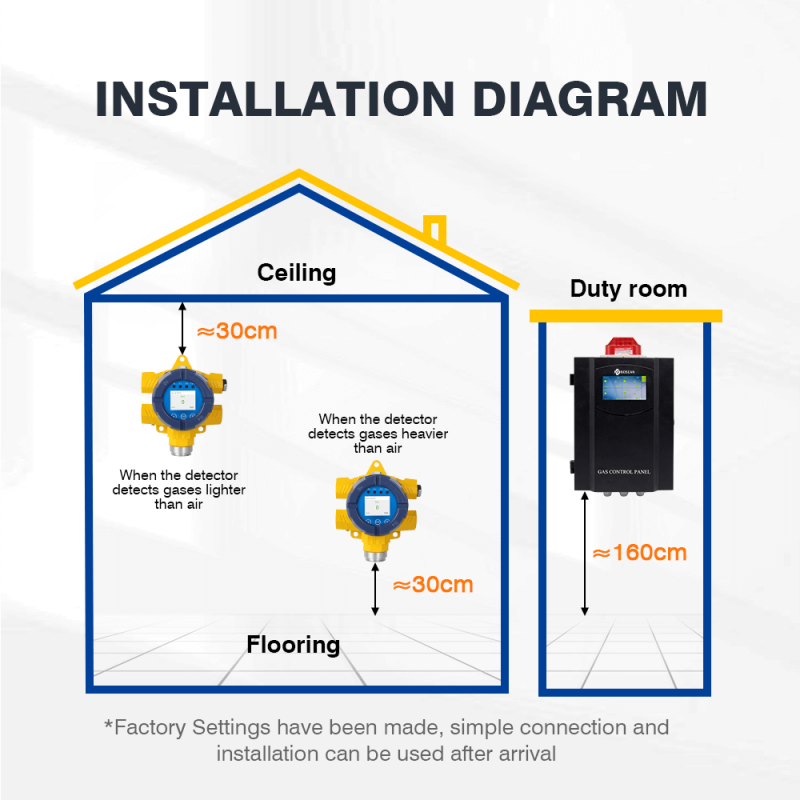

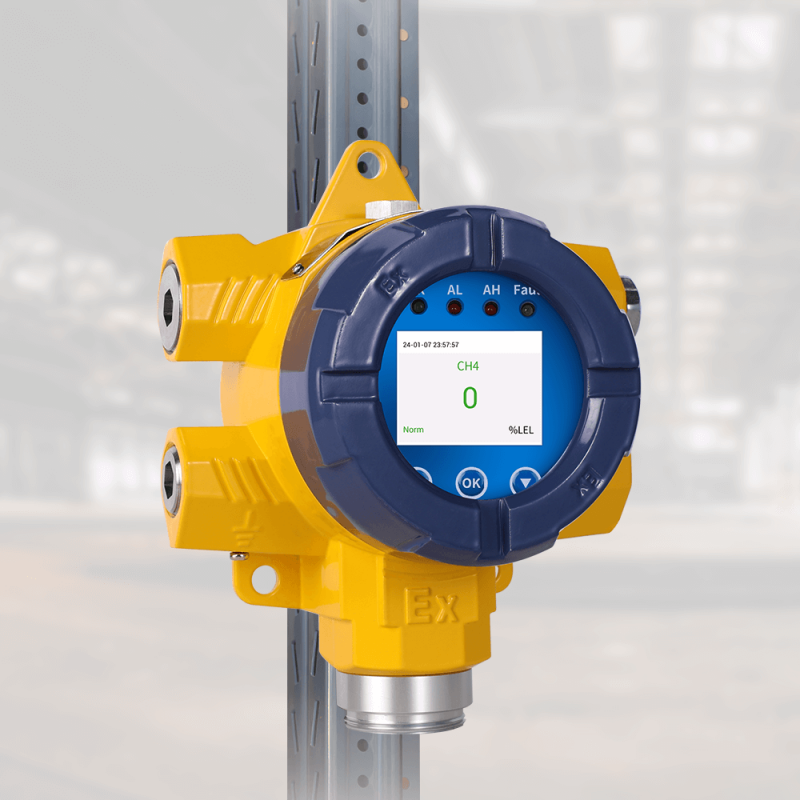

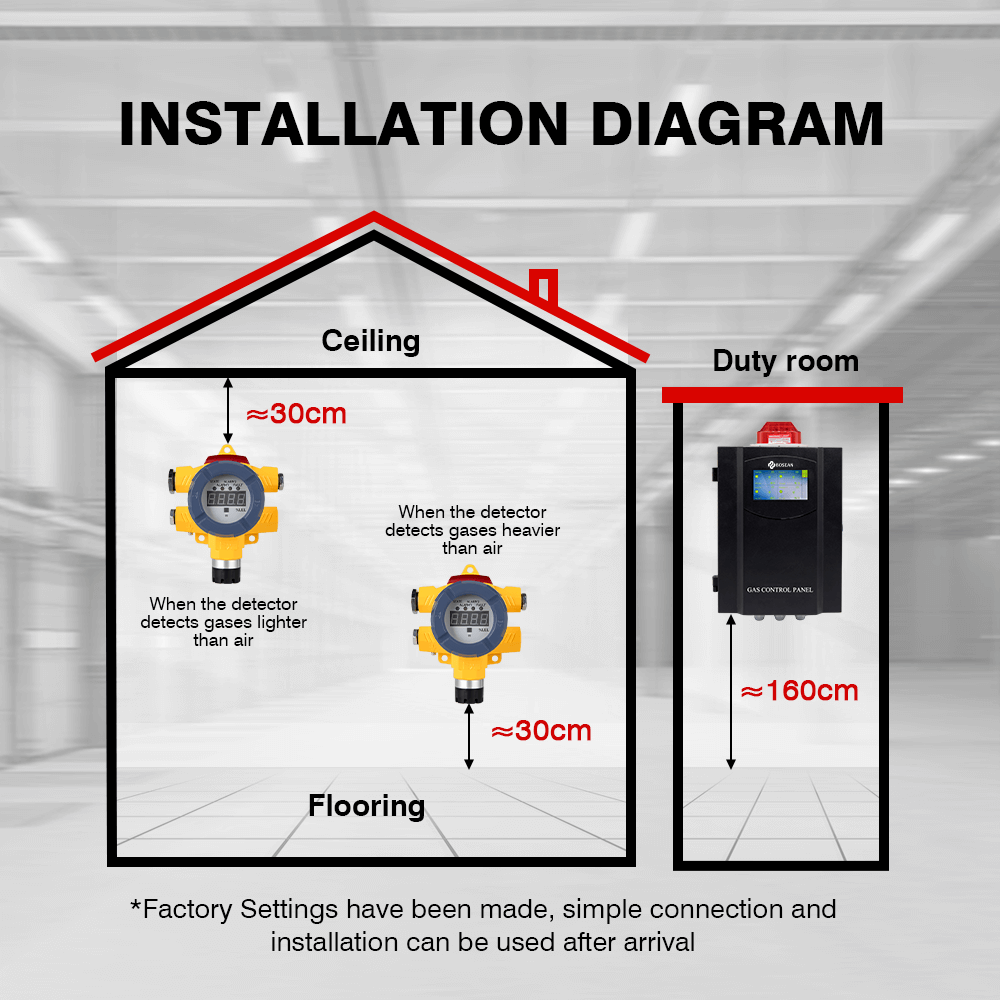

- Easy to Install: With a user-friendly design, installation is straightforward, saving time and reducing installation costs.
Specifications
| Target Gas | CombustibleGases and Toxice Gases |
| Sample Manner | Natural Diffusion |
| Sensor Type |
Catalytic Gas Sensor For Combustible Gas
Electrochemical Gas Sensor For Toxic Gas
|
| Unit | %LEL. ppm, %VOL |
| Load resistance(4-20)mA | ≤250Ω |
| Protection class | IP66 |
| Accuracy | F.S.±5% |
| Repeatability | F.S.±3% |
| Response Time | ≦30s |
| Working Voltage | 36V±6VDC |
| Load resistance(4-20)mA | ≤250Ω |
| Working pressure | 36~106Kpa |
| Working environment | Combustible Gas:Tem.:-40C~70°C Toxic Gas: Tem.:-20C ~50C |
| Power Consumption | ≤2W |
| Transmit Distance | ≤1000m |
| Pressure | 86kPa~106kPa |
| Gas Sensor Life | 2 years |
| Explosion-proof grade | Ex db IIC T6 |
| Cable | ≥RVVP0.75 mm2×2 |
| Install Screw Thread | G3/4 |
| Dimensions | 181*154*93cm |
