IR2 Infrared Flame Detector
IR2 is a point-type infrared flame detector, explosion-proof economical dual infrared flame detector, which can effectively detect hydrocarbon (commonly known as red light) flames and alarm. Fire alarm and fault relay output.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature

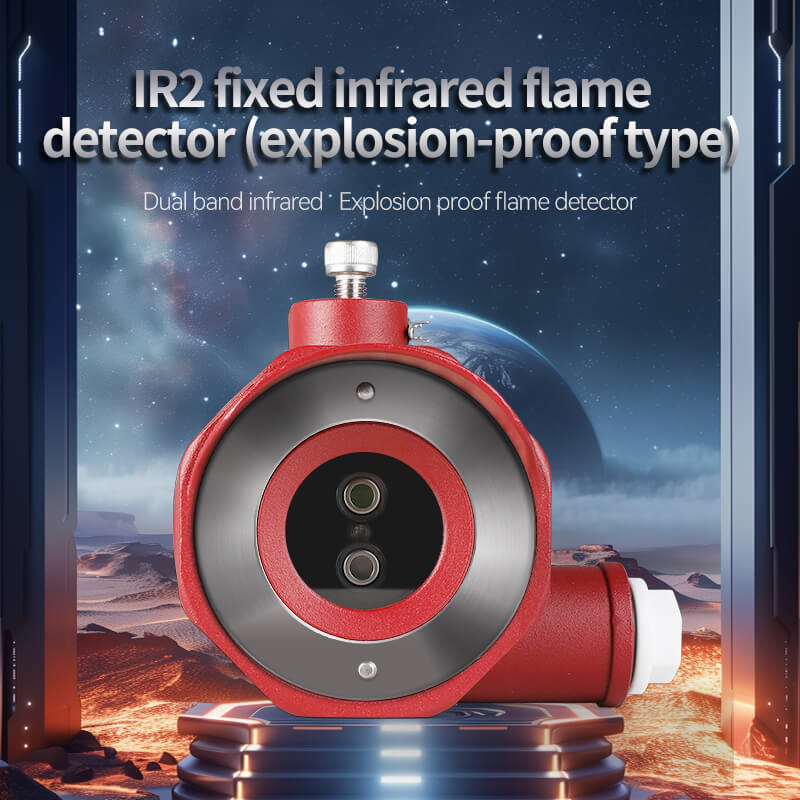

- Dual band infrared Explosion proof flame detector.

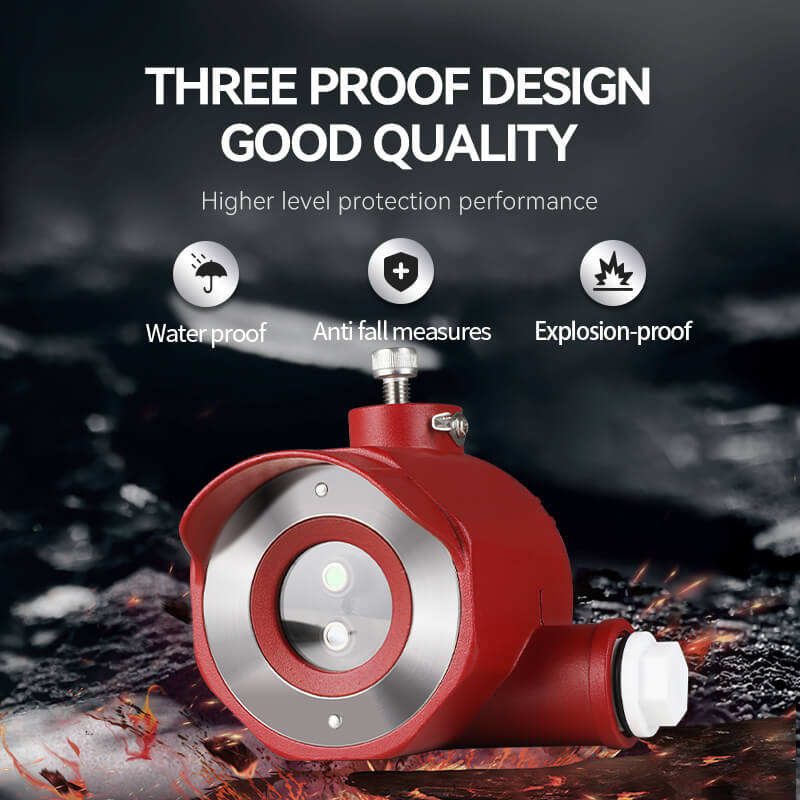

- Higher level protection performance,Water proof,Anti fall measures,Explosion-proof.
- High quality sensors,short response time,highly sensitive detection.
- Response time: ≤10 seconds
- Optional: 4-20mA,RS485.
Specifications
| Spectral Range(IR) | 3.8um,4.4um |
| Workingvoltage | DC24V (16-32VDC) |
| Ratod current | static≤60mA，alams≤70mA |
| Enviromnental temperature | -20℃~55℃ |
| Environmental humidity | ≤95RH no dew |
| Fire sensitivity | Level 1 (factory seting) |

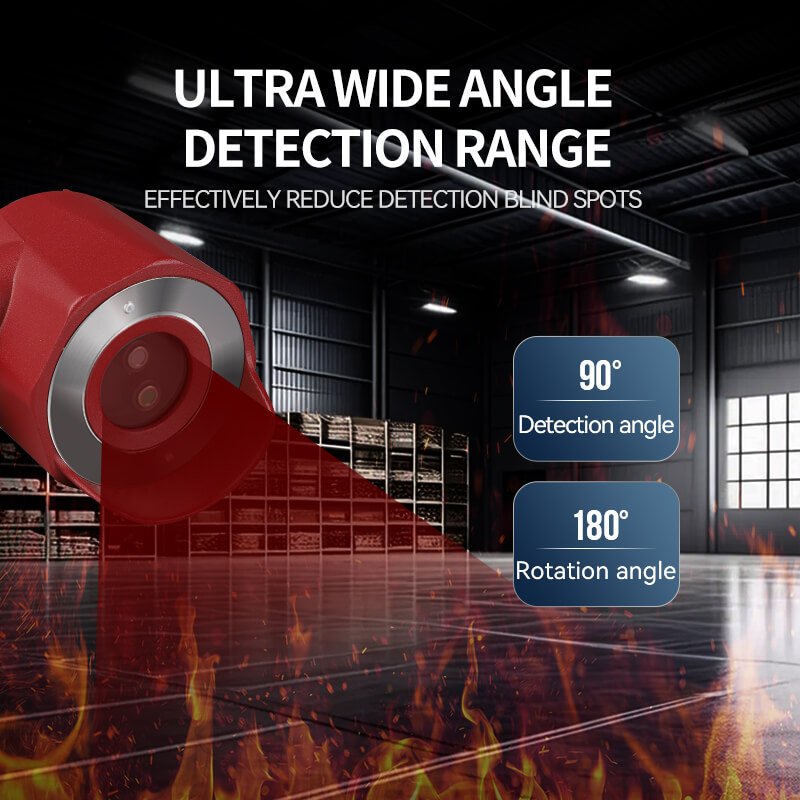

| Rotation angle | up,dowm: 180°, left,right: 180° |
| Detection angle | 90°(maxdmum soser angle<110°） |
| Output | Alarm relay(normaly open), Fault relay(normaly closed) |
| Shell material weipnt | die cast aluminum 1Kg |
| Explosion proofmark | Exd llC T6 Gb |
| Protection level | IP67 |
| Dimension | 140x135x109(mm) |
