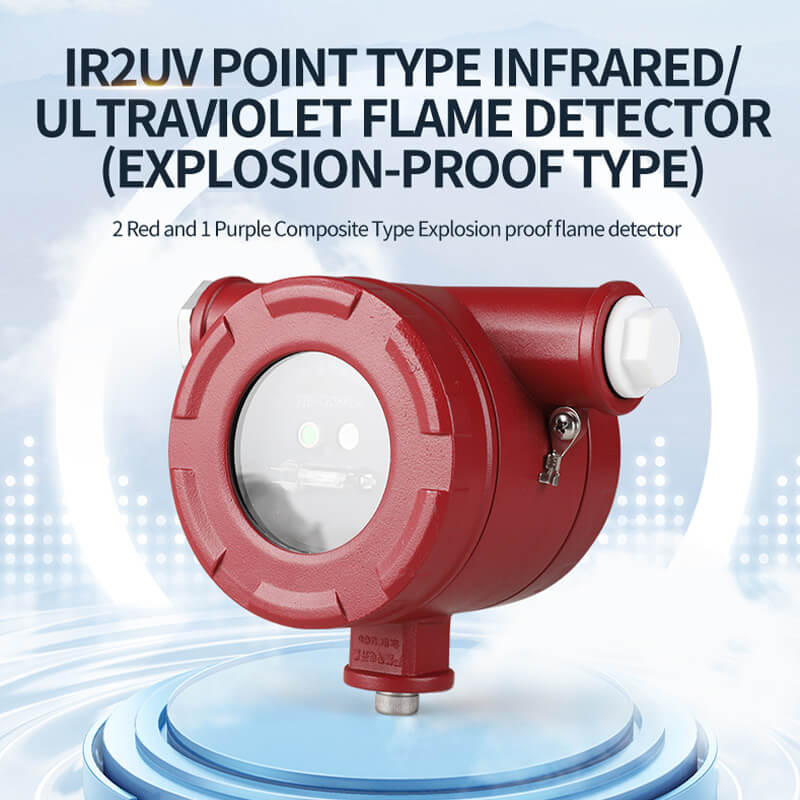

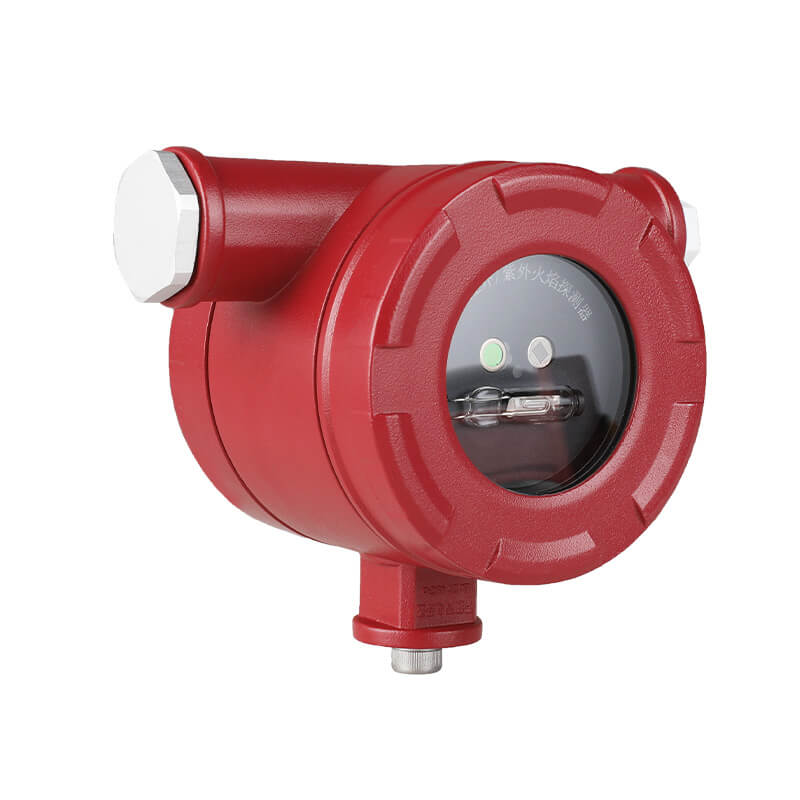

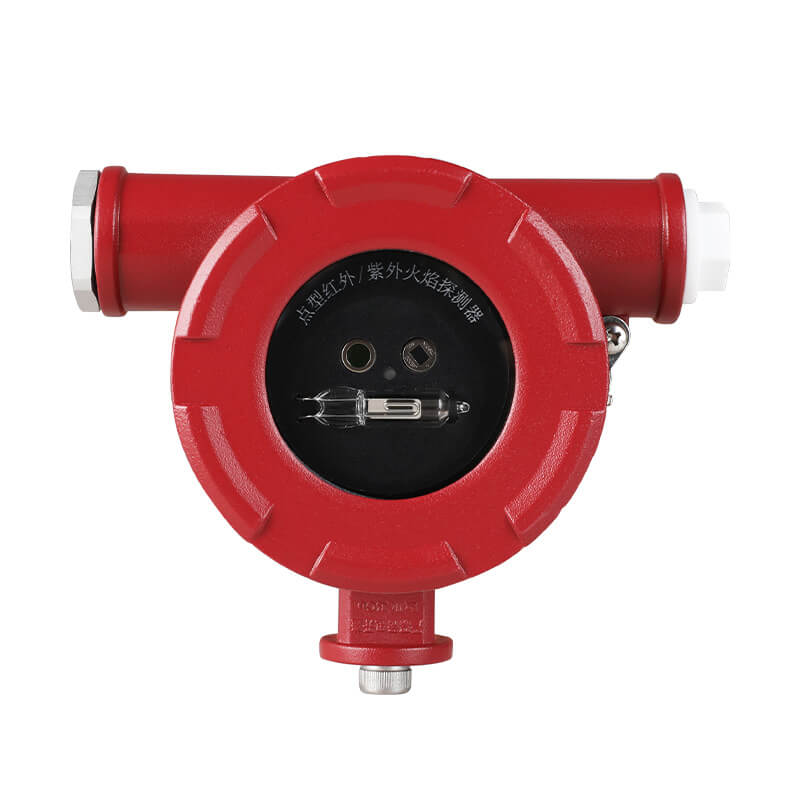

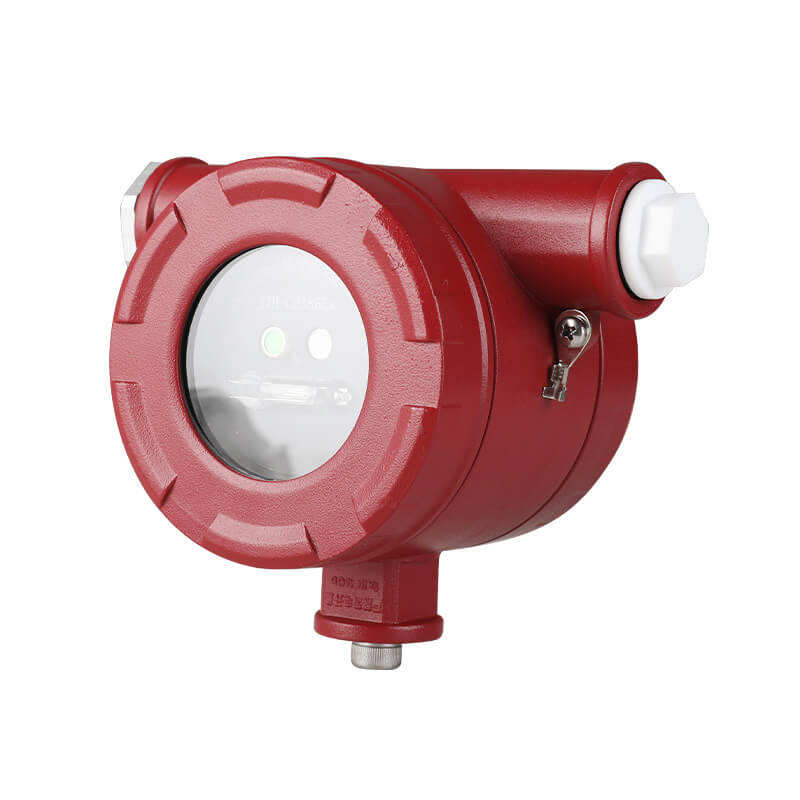

IR2UV Infrared Flame Detector
One infrared/single ultraviolet, dual detector multi band flame detector, effectively detects hydrocarbon (commonly known as red light) and non hydrocarbon (commonly known as white light) flames and alarms. Widely applicable to special environments such as highway tunnels and pipe galleries, as well as places with potential explosion hazards such as petroleum, chemical, power, pyrotechnic, special chemical, and storage areas.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- 1 Red and 1 Purple composite type explosion proofflame detector.
- Multiple protection,High precisionsensor，more accurate flamedetection，rich interfaces.
- CNEX Explosion proof certification，quality assurance. 3C certification，safety certification.
- Short response time，highly sensitive detection，low false alarm rate，rich interfaces，anti-interference.
- Optional: 4-20mA,RS485.

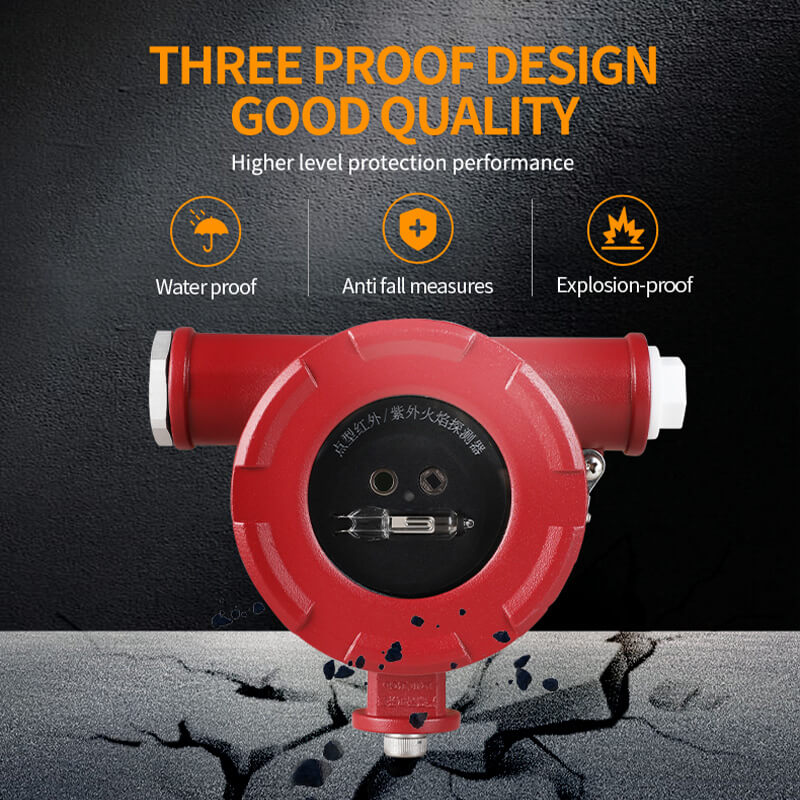

- Respond to both hydrocarbon and non hydrocarbon fires; Can respond to the fire of growth; Can respond to dirty fireworks and even cold nitrous oxide fires;Wide temperature working range; The lens will not lose its detection ability when exposed to water, fog, rain, or smoke.
Specifications
| Spectral Range(IR) | 4.4um, 5.0-11um/180-290um |
| Workingvoltage | DC24V (16-32VDC) |
| Ratod current | static≤60mA，alams≤70mA |
| Enviromnental temperature | -20℃~55℃ |
| Environmental humidity | ≤95RH no dew |
| Fire sensitivity | Level 1 (factory seting) |
| Rotation angle | up,dowm: 180°, left,right: 180° |

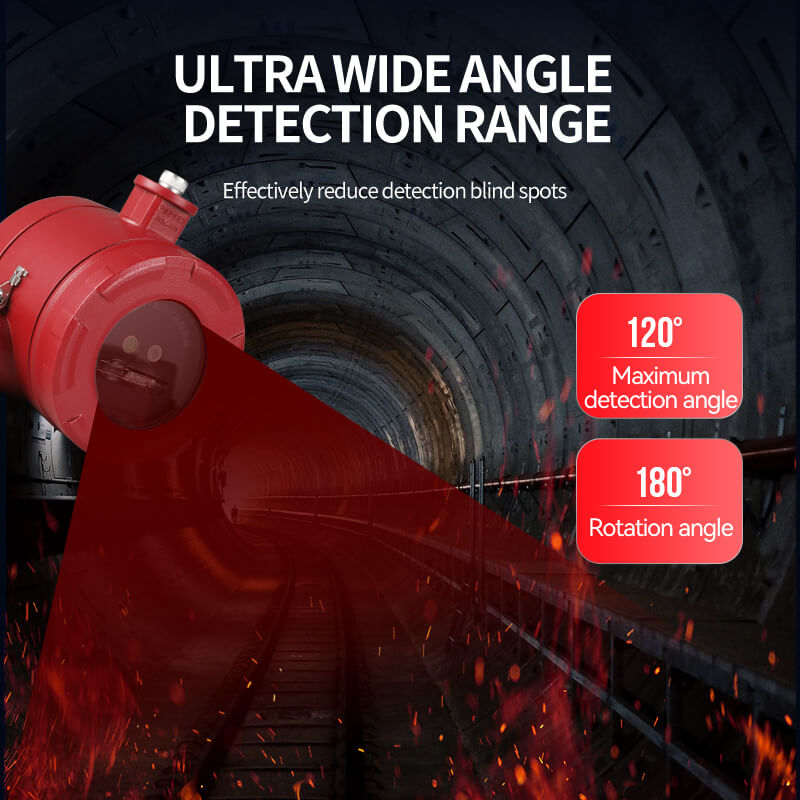

| Detection angle | ≤120°(IR<90°） |
| Output | Standard relay output,Optional output:4~20mA RS485, Bus circuit |
| Shell material weipnt | die cast alurinuryl,6kg, customized: stainless steel/6Kg |
| Explosion proofmark | Exd llC T6 Gb |
| Protection level | IP67 |
| Dimension | 162x161x152(mm) |
