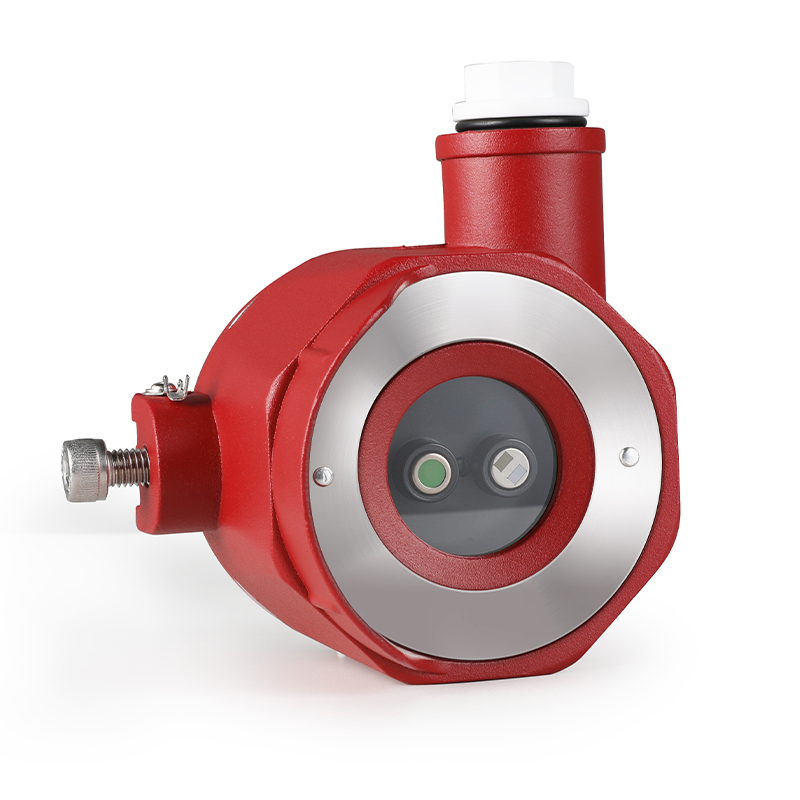

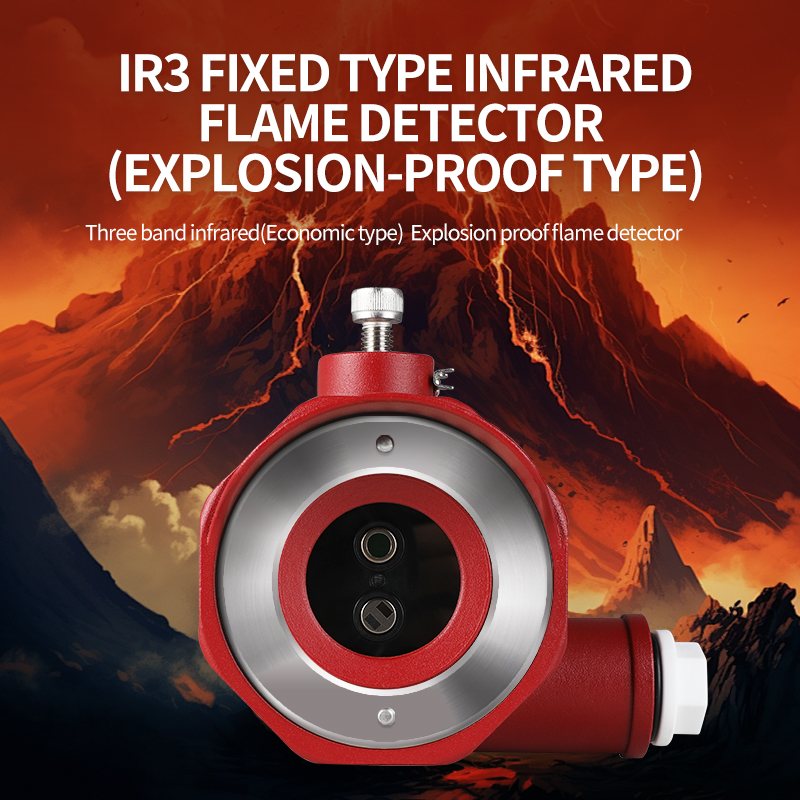

IR3 (economic type) Infrared Flame Detector
Three infrared multi-band flame detectors can effectively detect hydrocarbon (commonly known as red light) flames and alarm. Three types of signal output. Widely used in: indoor and outdoor environments, such as: petroleum, chemical, factory, warehouse and other places where explosion hazards may occur for fire detection.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- Three-band infrared explosion-proof.

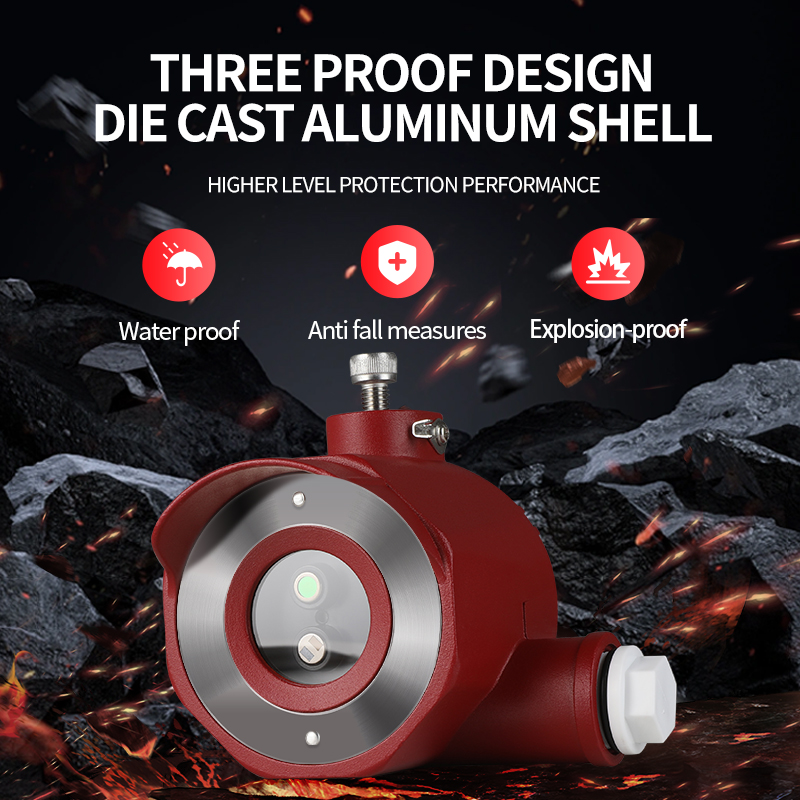

- Higher level of protection performance.

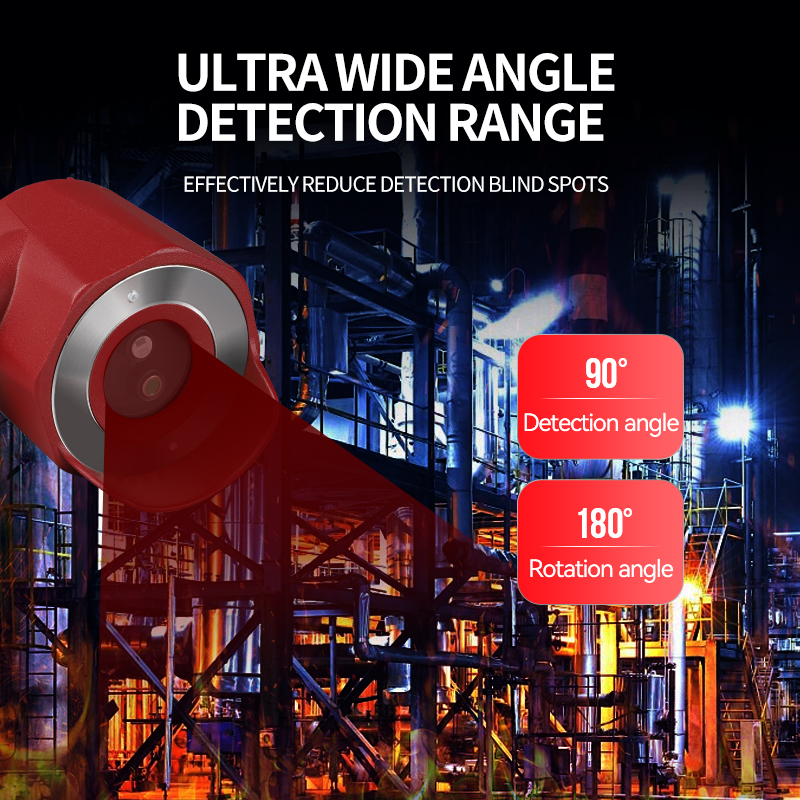

- Effectively reduces detection blind spots.
Specifications
| Spectral Range(IR) | 3.8um, 4.4um, 5.0-11.0um |
| Workingvoltage | DC24V (16-32VDC) |
| Ratod current | static≤60mA，alams≤70mA |
| Enviromnental temperature | -20℃~55℃ |
| Environmental humidity | ≤95RH no dew |
| Fire sensitivity | Level 1 (factory seting) |
| Rotation angle | up,dowm: 180°, left,right: 180° |
| Output | Standard relay output,Optional output:4~20mA RS485, Bus circuit |
| Shell material weipnt | die cast alurinuryl,6kg, customized: stainless steel/6Kg |
| Explosion proofmark | Exd llC T6 Gb |
| Protection level | IP67 |
| Dimension | 162x161x152(mm) |
TAG: fixed infrared flame detector flame detector infrared flame detector
