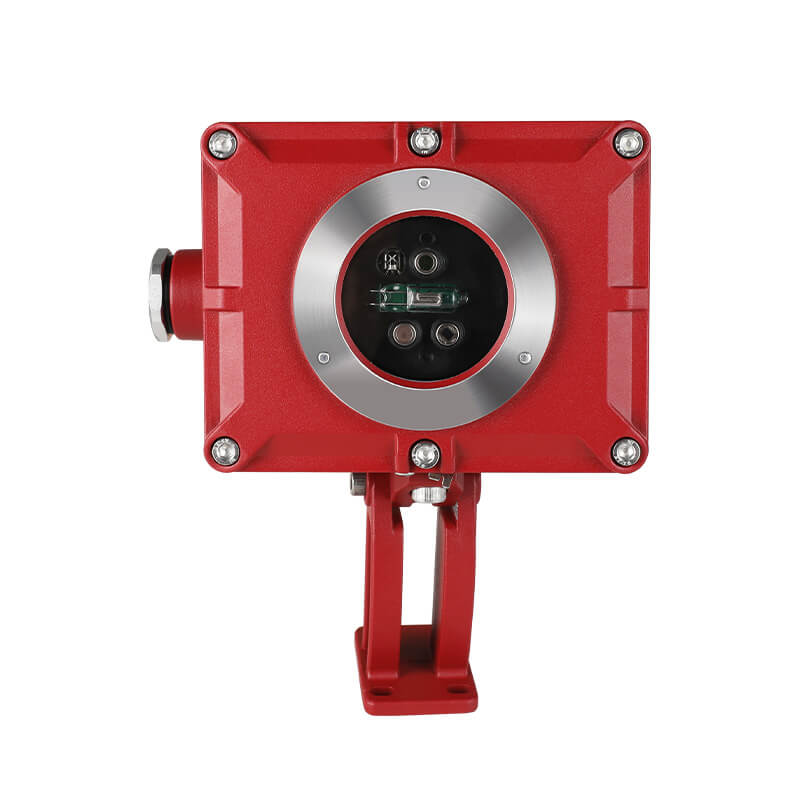

IR3UV Infrared Flame Detector
IR3UV infrared flame detector utilizes advanced multi infrared sensing technology, with three highly sensitive infrared sensors detecting three different infrared wavelengths.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- High standard solid explosion-proof metal shell, immune to electromagnetic radiation, sunlight and background thermal radiation.
- The new appearance design is more suitable for product identification.
- With highly sensitive and accurate infrared wavelength sensor and horizontal high-quality fast-response ultraviolet wavelength sensor, it is more reliable and accurate.

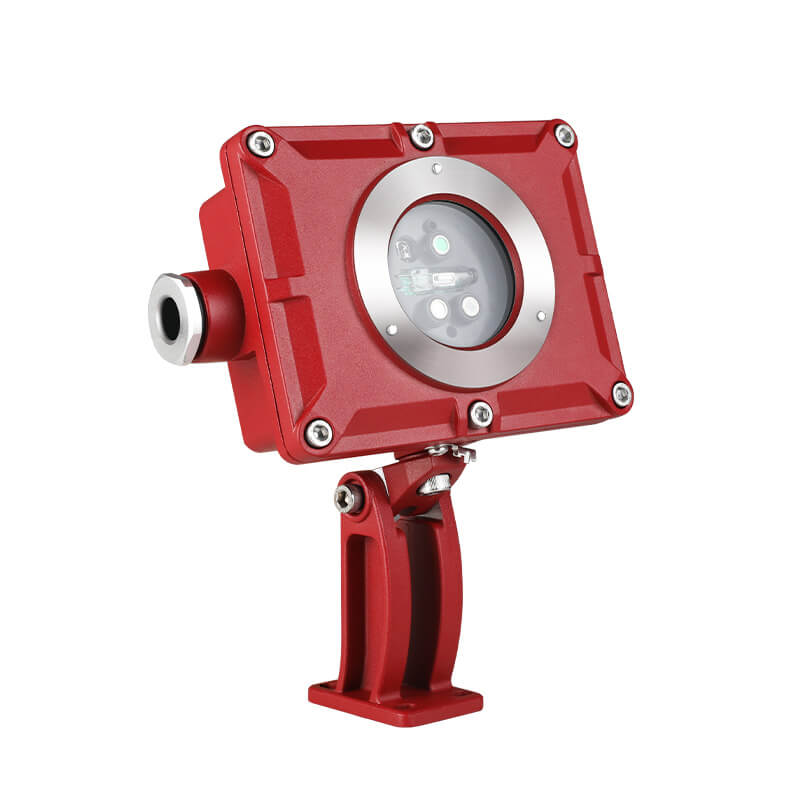

- The bracket can be adjusted at any angle horizontally, up and down, flexible and convenient.
- With anti-sexual protection function, it can effectively protect the main circuit from damage.
- Response time: ≤10 seconds
- Optional: 4-20mA,RS485.
Specifications
| Spectral Range(IR) | 3.8um,4.4um, 5.0-11um/180-290um |
| Workingvoltage | DC24V (16-32VDC) |
| Ratod current | static≤60mA，alams≤70mA |
| Enviromnental temperature | -20℃~55℃ |
| Environmental humidity | ≤95RH no dew |
| Fire sensitivity | Level 1 (factory seting) |
| Rotation angle | up,dowm: 180°, left,right: 180° |
| Detection angle | ≤120°(IR<90°） |
| Output | Standard relay output,Optional output:4~20mA RS485, Bus circuit |
| Shell material weipnt | die cast alurinuryl,6kg, customized: stainless steel/6Kg |
| Explosion proofmark | Exd llC T6 Gb |
| Protection level | IP67 |
| Dimension | 170x165x123(mm) |
