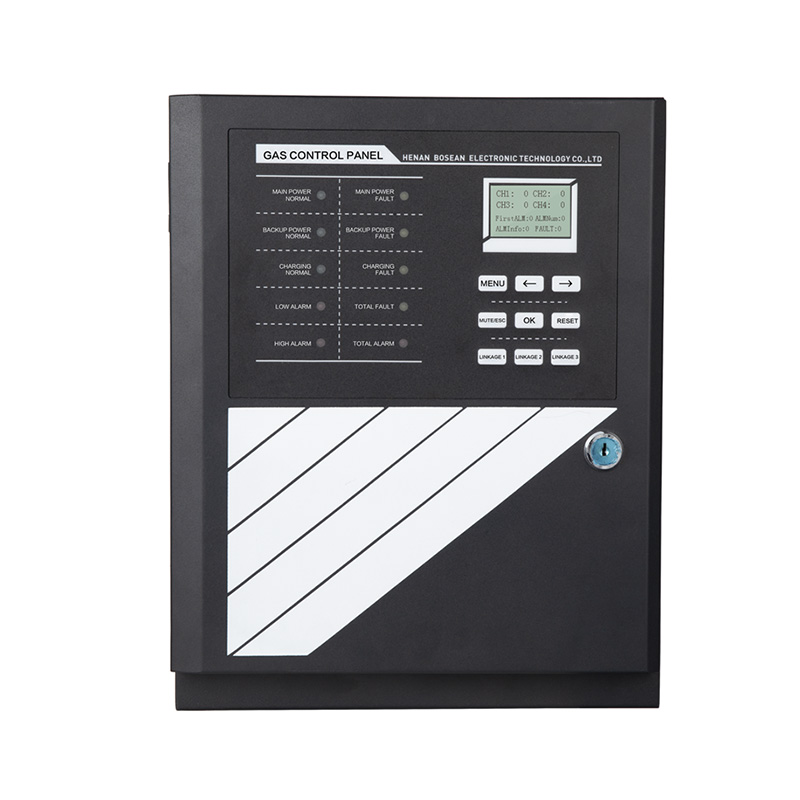

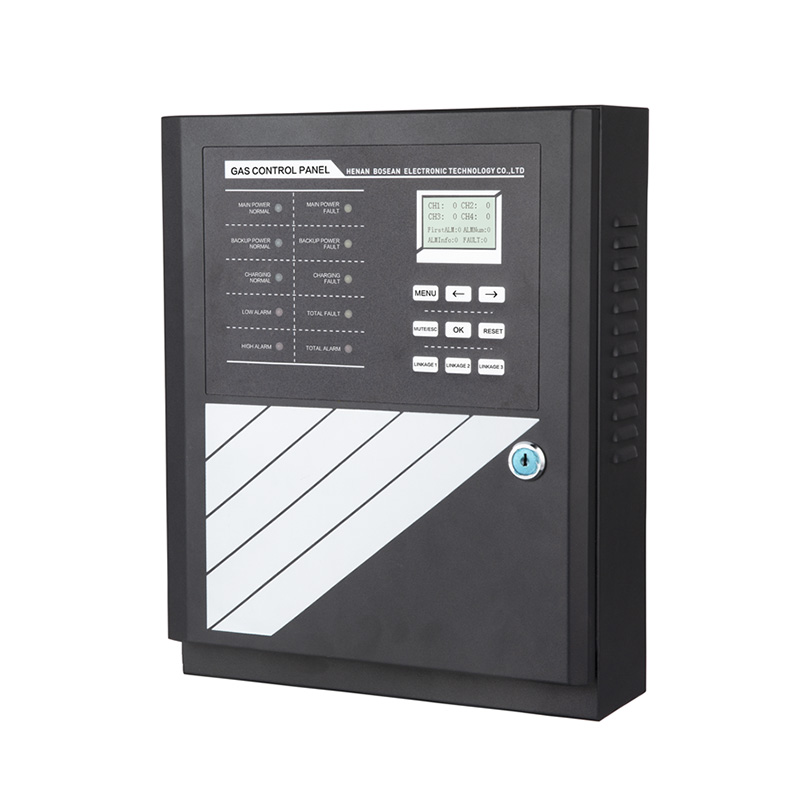

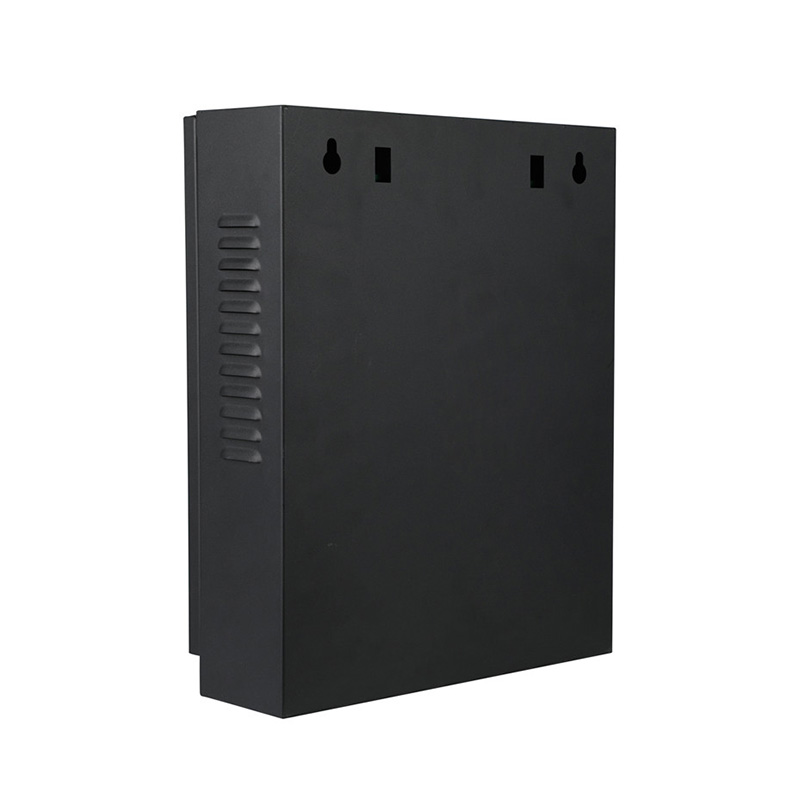

S-8000 Gas Controller
S-8000 Gas Monitor System is a RS485 signal controllersystem. It is used for detecting gas concentration in the air.The system could connect to detectors for different gases in the same time.The system adopts MCU as control unit, withlarge LCD touch screen，excellent gas sensor with highsensitivity and fast response. It will give visual and audiblealarm when the gas concentration reach or exceed thepresetting alarm level to remind you to take effective actionsin time and it could also start the ventilation fan and otherequipment to prevent from accident and explosions.
We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- Two level sound and light alarm
- Multi level permissionsensure data security
- Equipped with backup power
- Fault self check
- Rich external control ports
- Alarm Record Query
Specifications
| Display | LcD screen and LED light |
| Panel consumption | ≤80W |

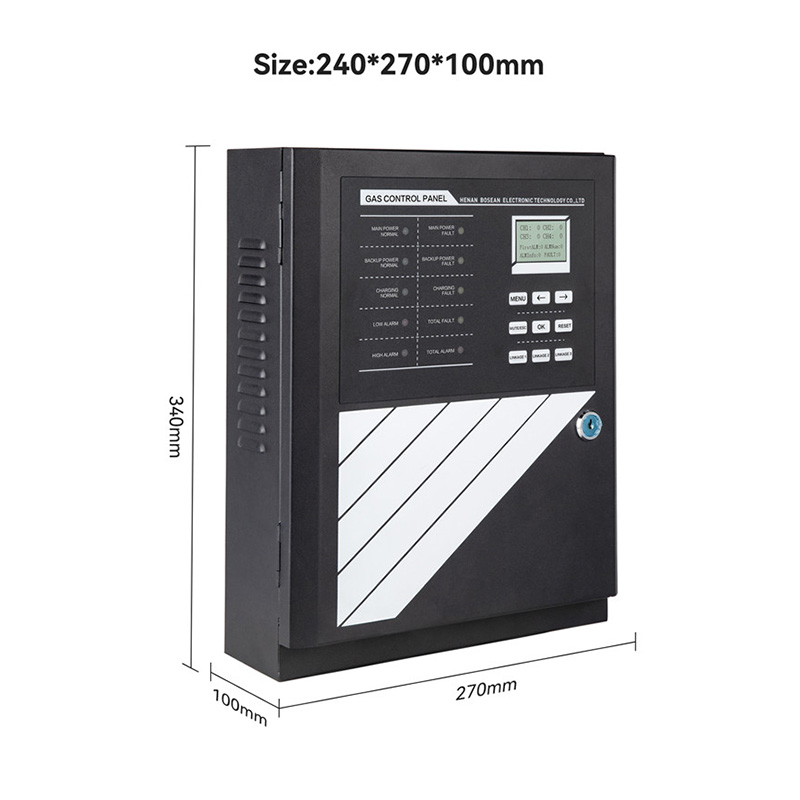

| Product size | 34*27*10cm(about 7kg) |
| Working humidity | ≤95%no dew |
| Operation temperature | 0~40℃ |
| Detector power supply | DC24V±6V |
| Voltage | AC220v 50/60Hz |
| Contact output | Three passive contact (consumption: 10A/250VACor 10A/30vDC) |
| lnput | RS485 digital signal |
| Digital upload protocol | Two RS485,support MODBUS,O'reina |
