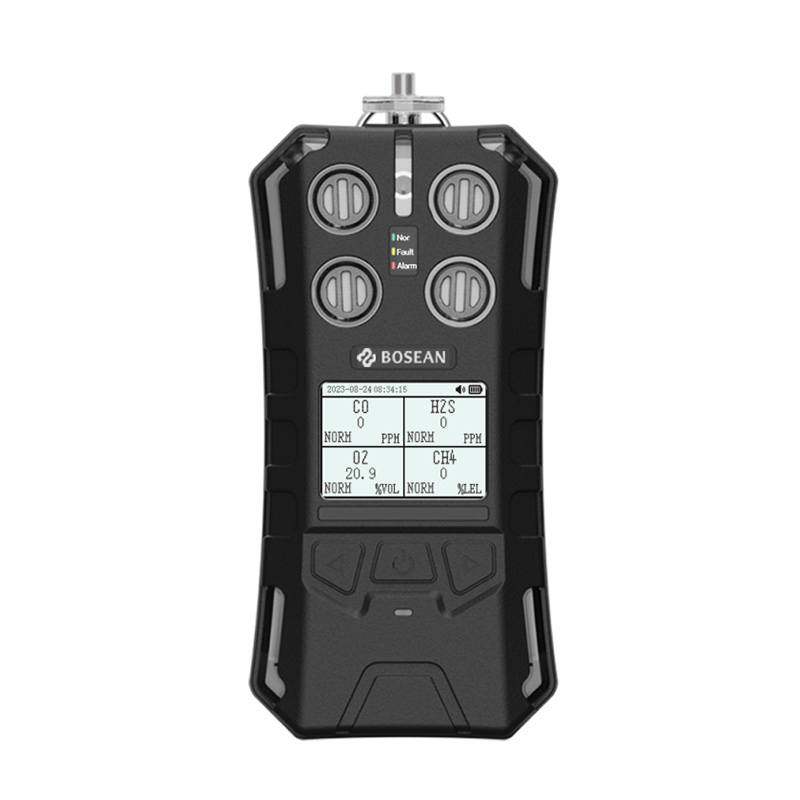

S40 4 in 1 Multi Gas Detector
S40 multi gas detector, hereinafter referred to as the detector, is an intelligent detector designed using advanced integrated circuit technology, standard intelligent technology level design technology, and proprietary digital analog hybrid communication technology.
The detector adopts two sampling methods, natural diffusion and built-in pump suction, for gas sampling. It uses high-quality gas sensors for gas detection, with good sensitivity and excellent repeatability. It is easy to use and maintain, greatly meeting the high reliability requirements of industrial site safety testing equipment. The shell is made of high-strength engineering plastic and composite anti slip rubber, with high strength, good hand feel, and waterproof, dustproof, and explosion-proof. It can be widely applied in industries and fields such as petroleum, chemical, environmental protection, smelting, refining, biomedicine, agriculture, scientific research, universities, etc.
The detector can detect 1-4 gas combinations according to user needs. It can integrate various detection principles such as electrochemistry, catalysis, semiconductor, thermal conductivity, and optics to provide users with reliable, accurate, and safe gas detection solutions.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- The sampling pump flow rate is 500mL/min, which can quickly detect gas concentration.

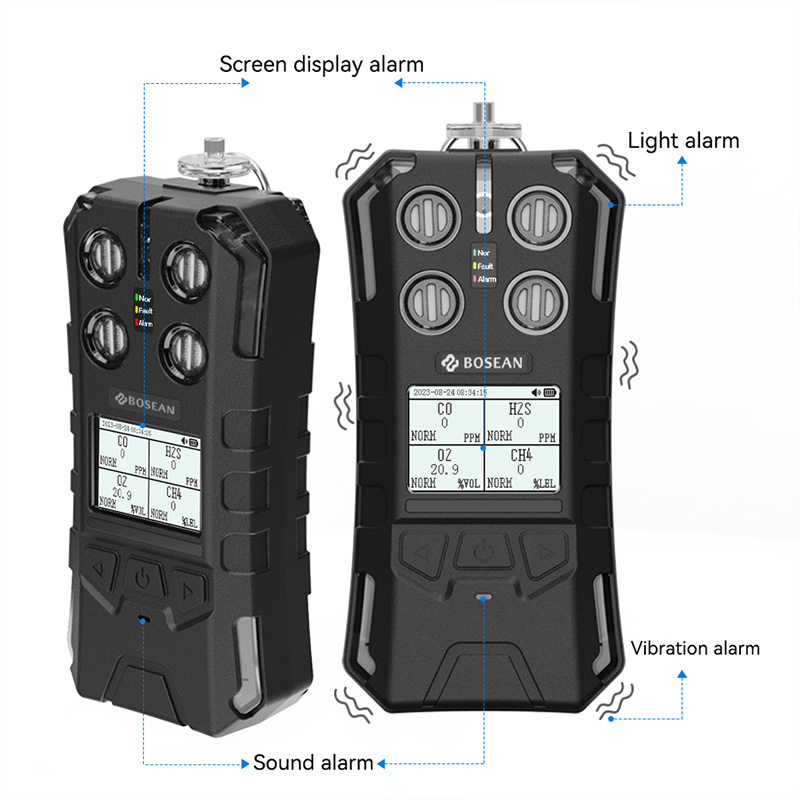

- Four alarm modes: sound, light, vibration and display.
- Sampling pump fault alarm and prompt.
- Support gas unit switching function.
- Support multi-point calibration mode, up to 3-point calibration can be supported.
- It can be connected to the host computer through the standard buckle charging cable for data reading and system upgrade.
- Two data storage methods, alarm storage and timing storage, a single channel can store 20,000 data.
- Support Chinese and English switching, and other languages can be customized.
- Support 4G data transmission, configurable data transmission interval, support cloud platform data viewing, device grouping and group alarm message sending.
- IP66 level protection, splashproof and dustproof.
- Support TWA and STEL alarm functions.

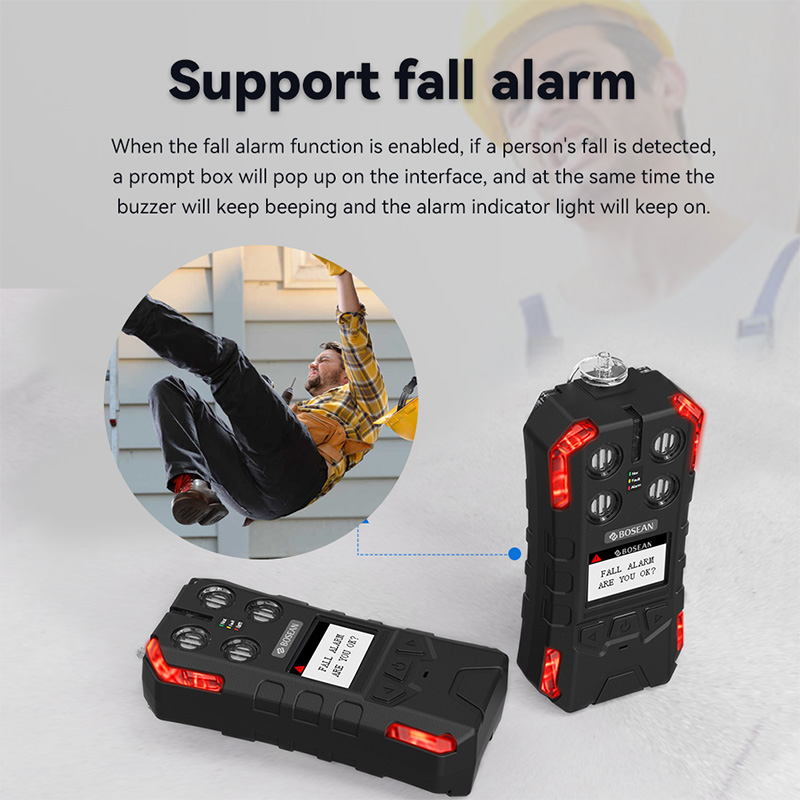

- Support fall alarm.
Specifications
Detection objects | Four gases can be arbitrarily combined |
Sampling method | natural diffusionl/pump |
Operating Voltage | DC3.7V(3800mAh lithium battery) |
Display | Dot matrix screen, resolution 190x128 |
Resolution | 1 umol/mol |
Response time | T(90)≤60s |
Protection level | IP66 |
Explosion-proof mark | Ex ib IICT4 Gb |
Standby time | >10h |
Working environment: temp | -25℃-+55℃; humidity level : <93%RH lno cewi) |
Charging time | <7h |
Alarm mode | sound,light,vibrate,and display , support fall alarm,air pump failure alarm. TWA/STEL alarm |
Gas detection | supports 1-4 types of gas detection |
