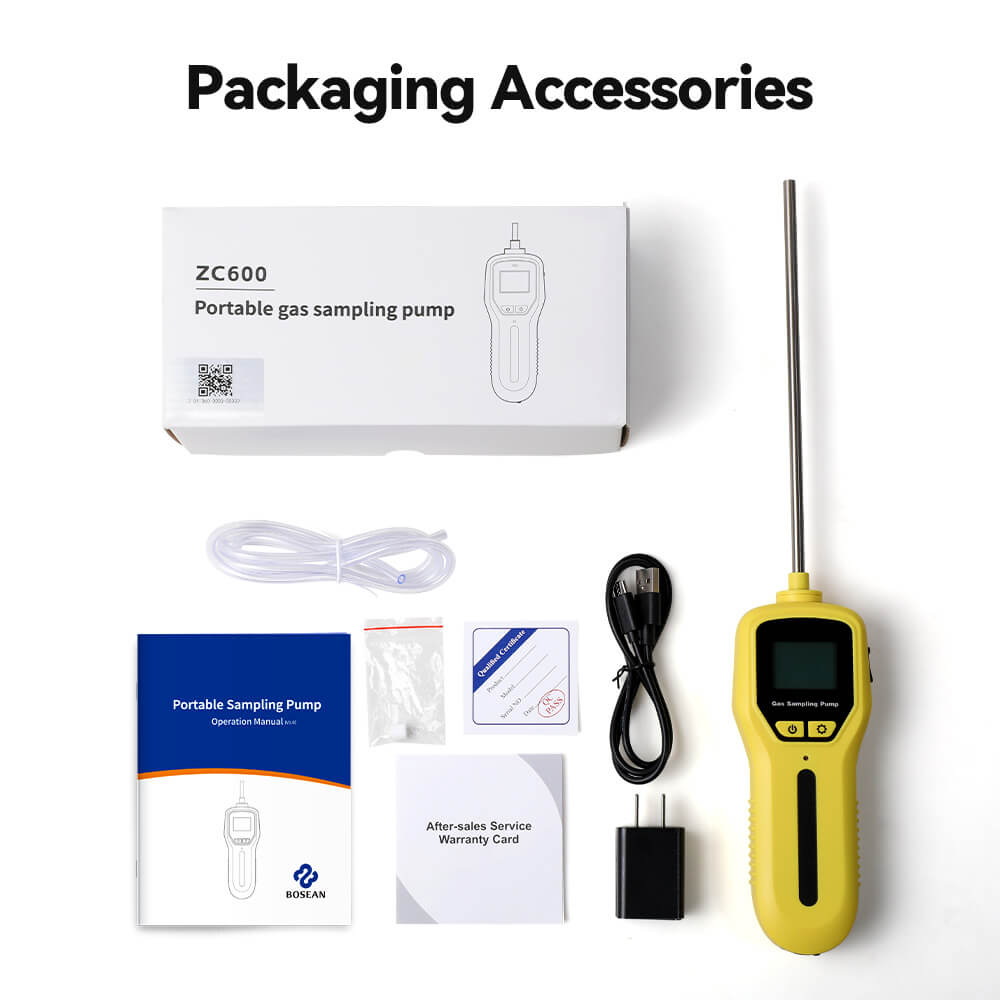

ZC-600 Gas Sampling Pump

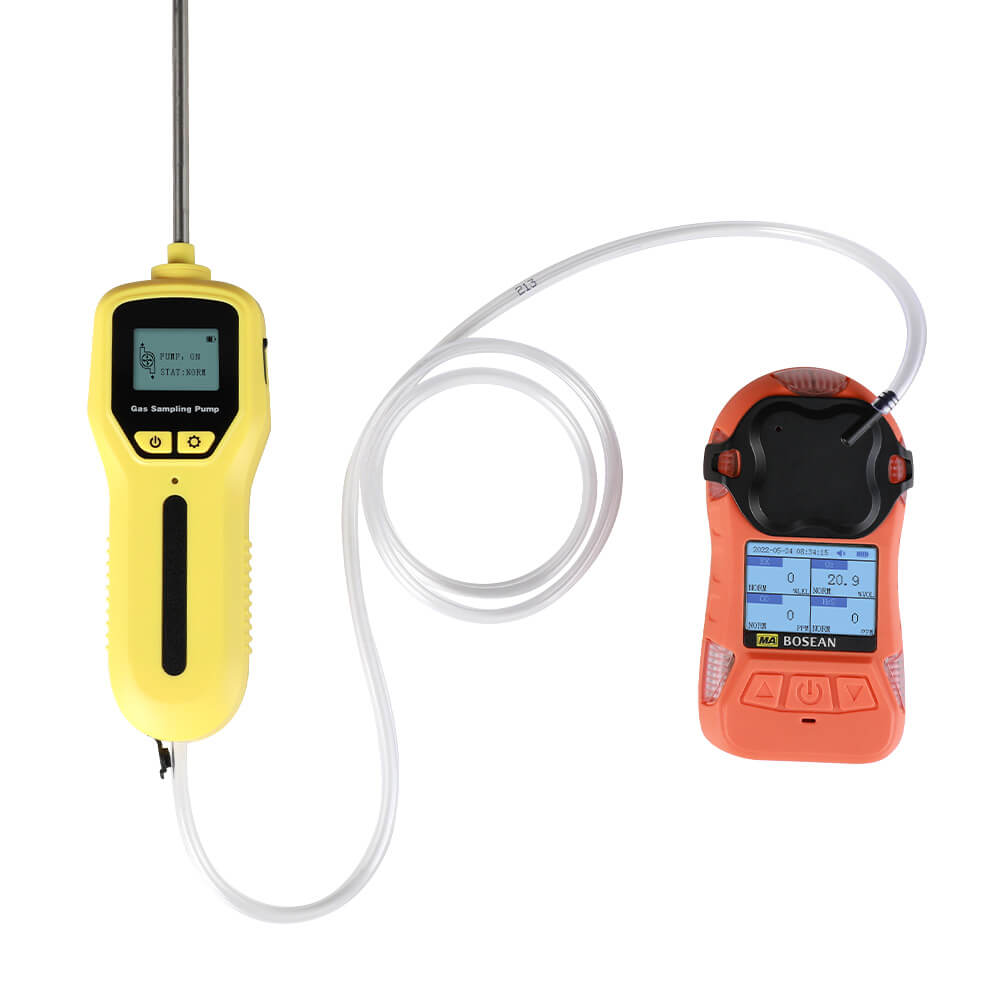

The ZC-600 portable sampling pump adopts the diaphragm self-priming principle. The gas to be detected can be extracted through the sampling pump and enter the gas detector through the calibration cover to analyze the gas leakage content. The sampling pump can be combined with different gas detectors to form a pump-suction gas detector to complete the pump-suction detection function.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature

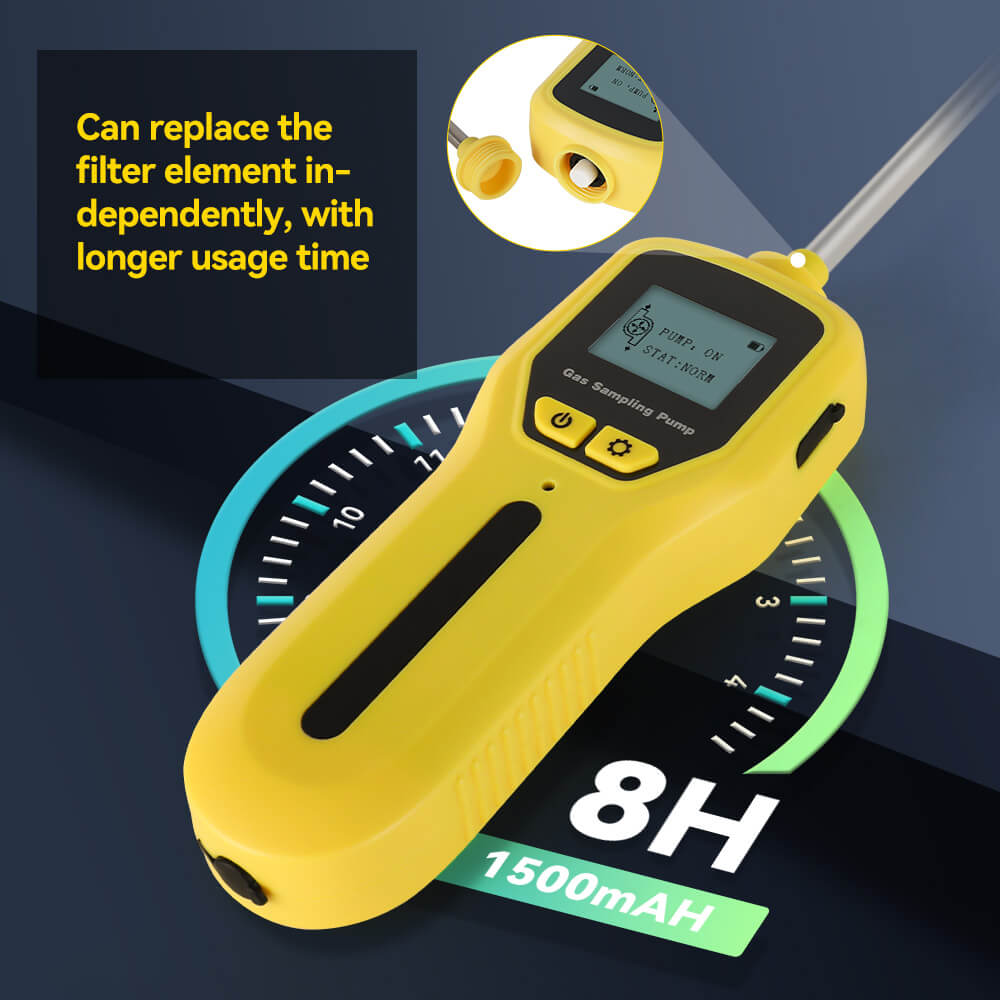

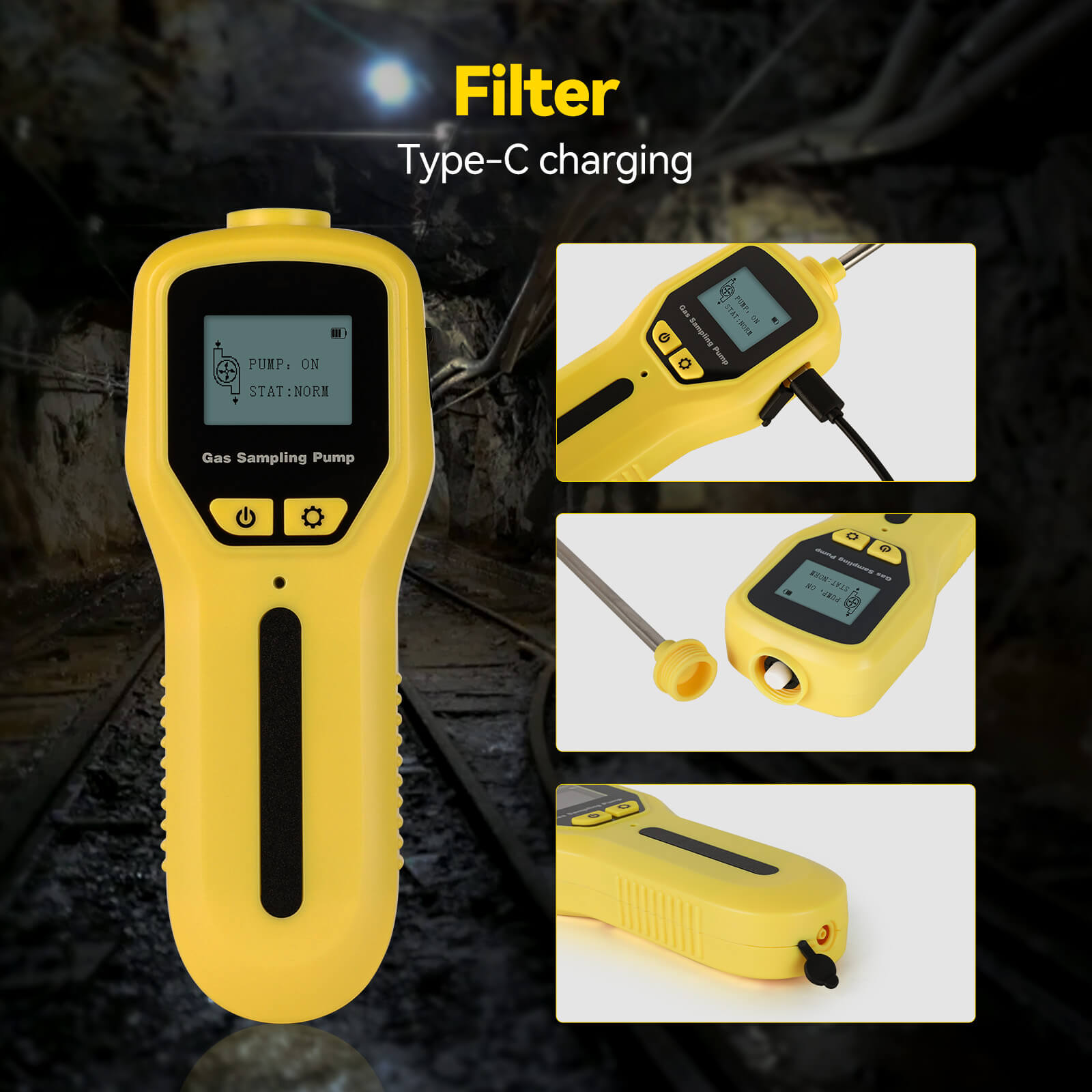

- Users can replace the filter element by themselves to extend the service life of the equipment.

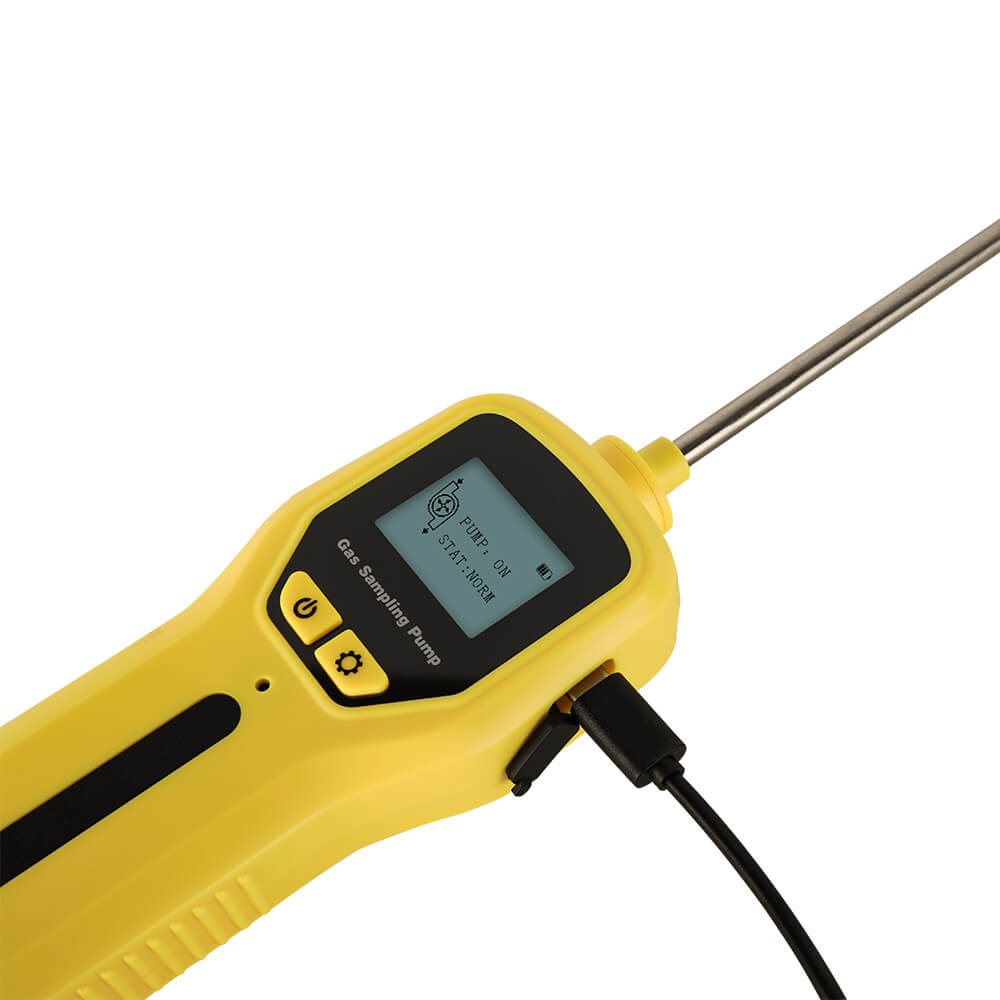

- The lithium battery-powered equipment can be charged and recycled, and the single use time is more than 8 hours.
- It can be matched with different diffusion gas detectors to reduce the overall cost of users.
Specifications
| Working principle | diaphragm self-priming |
| Flow rate | >500ml/min |
| Use environment | temperature -10℃~50℃, humidity <95%RH |
| Storage environment | temperature -10℃~50℃, humidity <85%RH |
| Power supply | 3.7V-1500mAh lithium battery rechargeable |
| Warm-up time | <20s |
| Explosion-proof mark | Ex ib llC T3 Gb |
| Display mode | LCD |
| Standby time | >8h |

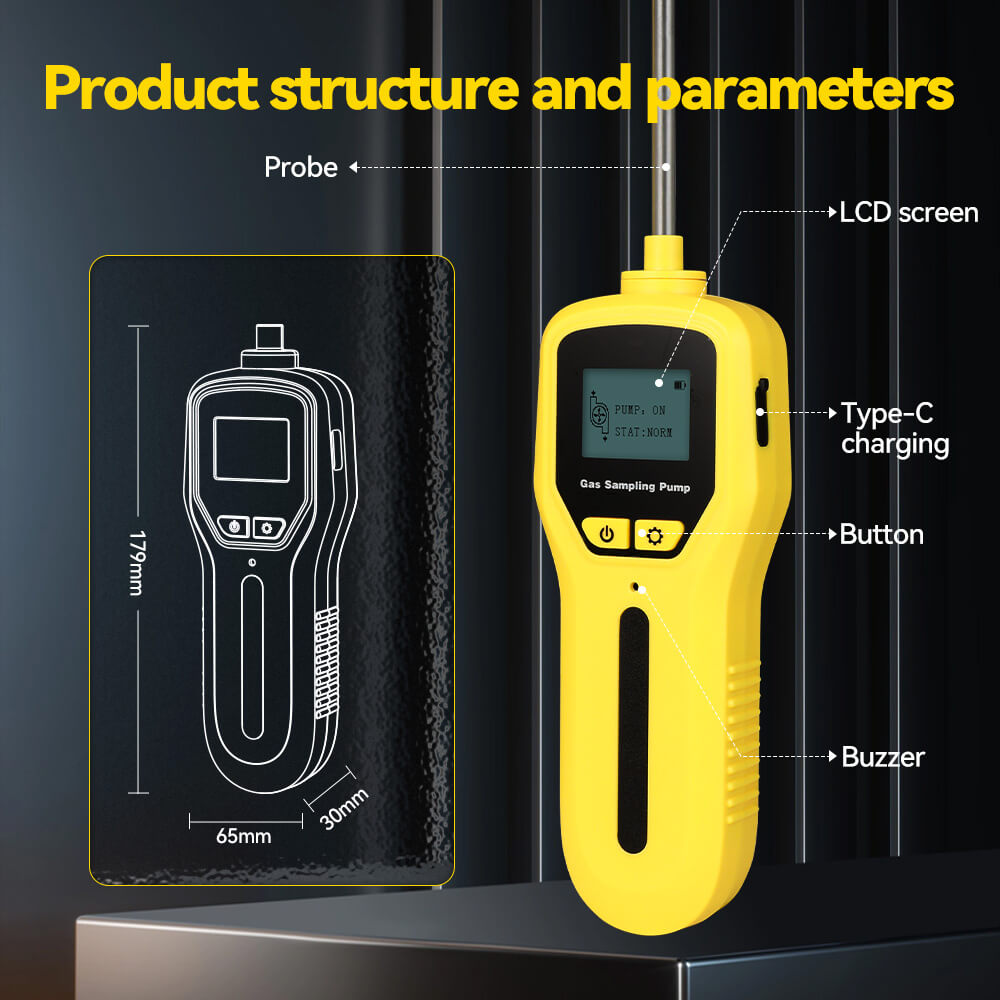

| Dimensions | 179*65*30mm (without probe) |
| Weight | about 180g |
