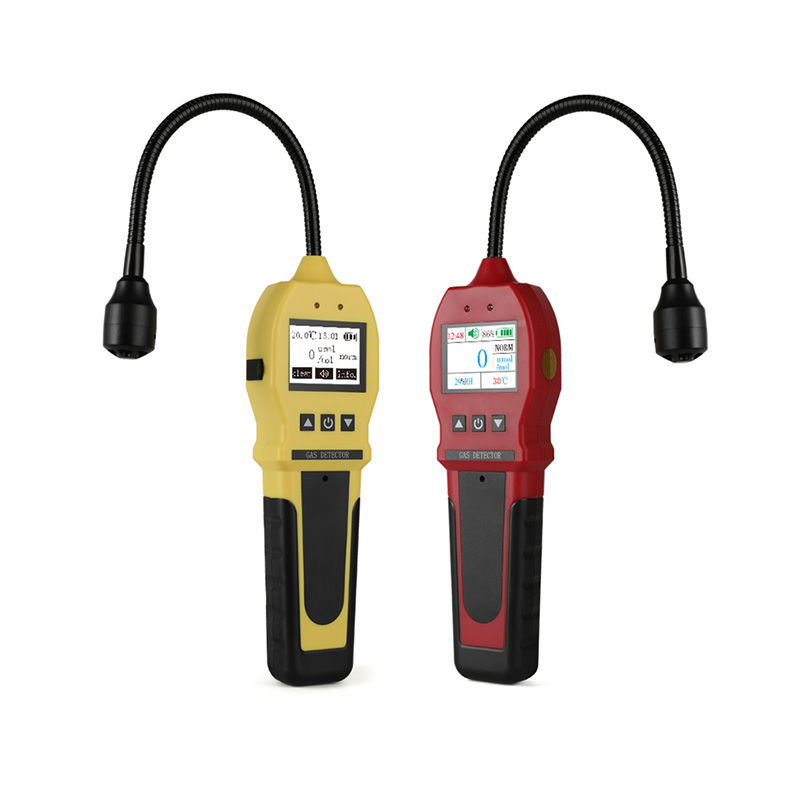

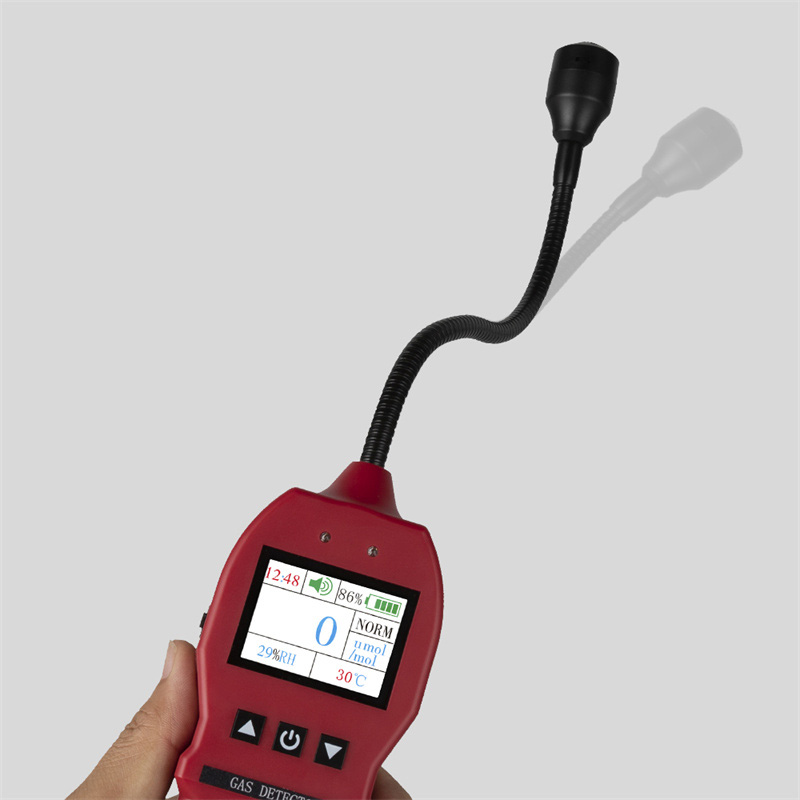

BH90E Portable Gas Leak Detector

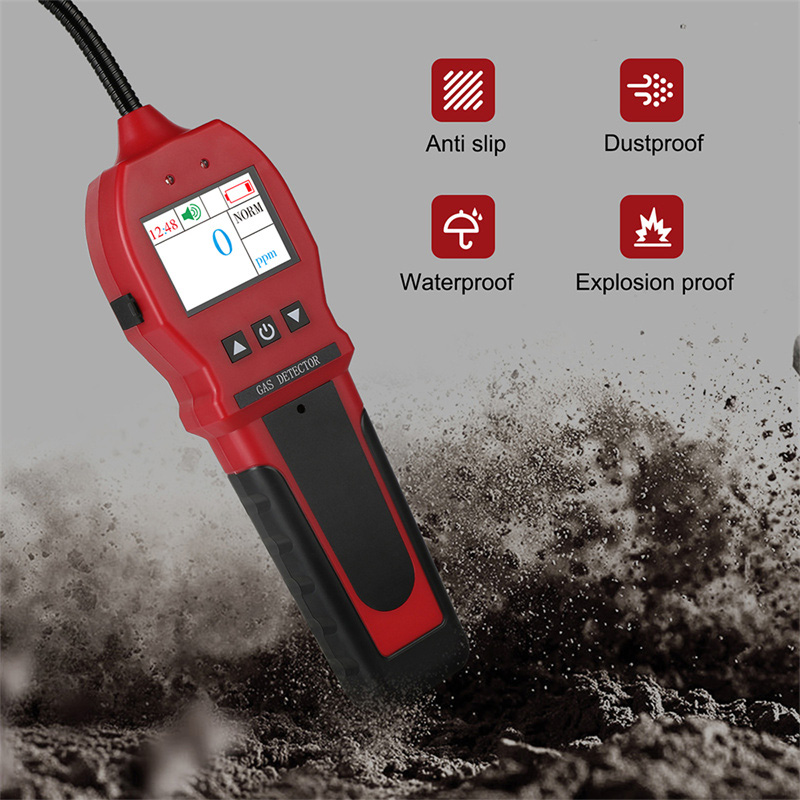

BH90E portable gas detector is a new type of gas leak detector that adopts LSI technique and meets international smart technology standards. With imported high quality semi-conductor sensor and embedded microcontroller, it detects gas leakage with high sensitivity and strong adaptive ability. Being waterproof, dustproof, explosion-proof, and easy to use with high reliability, the detector is widely used in oil, coal, municipal construction, chemical engineering, environmental protection, metallurgy, refining, gas transmission and distribution, biochemistry, agriculture, pharmaceutical industries. We provide gas detector OEM/ODM service.

Free calibration
Lifetime maintenance
1-year warranty

Send E-mail Get a Quote Download

Feature

MCU control, low consumption
High resolution STN LCD
Housing made of high strength engineering plastics and compound anti-slip rubber
Detection range (low alarm point, high alarm point) adjustable
Low battery alert, intrinsically safe design
alarm types: sound (mute mode also available), light and vibration
Gas calibration completed by the factory
Zero adjustment and data logging

Specifications

Target gas	Combustible gas
Range	0-10,000ppm (μmol/mol)
Sampling method	Natural diffusion
Alarm point	Default: Low alarm: 500ppm; High alarm: 2000ppm. Support personalized setting.
Alarm types	Audible buzzer alarm; Visual LED light alarm; Vibration alarm
Warm-up time	60S
Response time	＜30s
Protection level	IP65
Sensor type	Imported FIGARO sensor
Sensor life	2 years
Power supply	Rechargeable lithium battery, DC3.7V 1800mAH
Charging time	6h-8h
Continuous working hours	No less than 8 hours (normal working environment)
Working condition	Temperature: -10～40℃ Humidity: ≤95% RH with no condensation.
Storage condition	Temperature: -20～50℃ Humidity: ≤85% RH, avoid caustic gases or substances.
Weight	Approx. 300g (excluding accessories)
Dimension	Approx. 210mm(L)×66mm(W)×30mm(H)

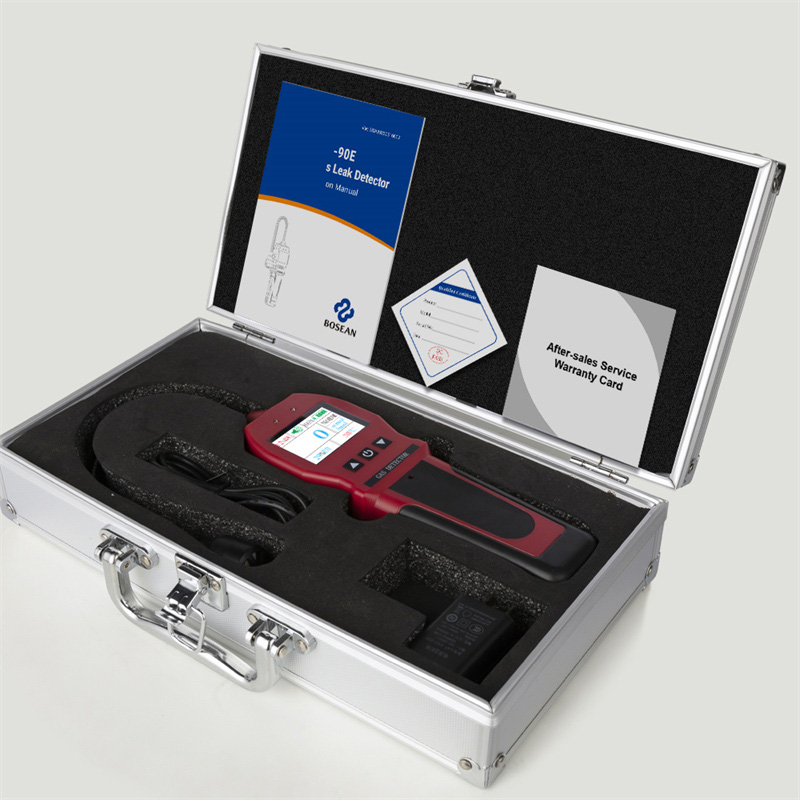

Packing list	Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.
