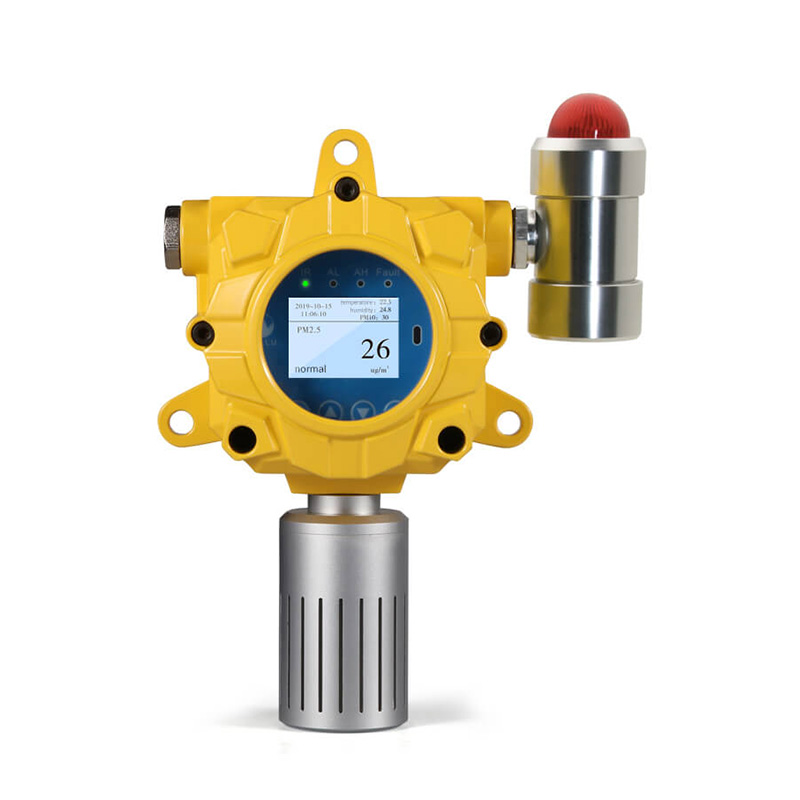

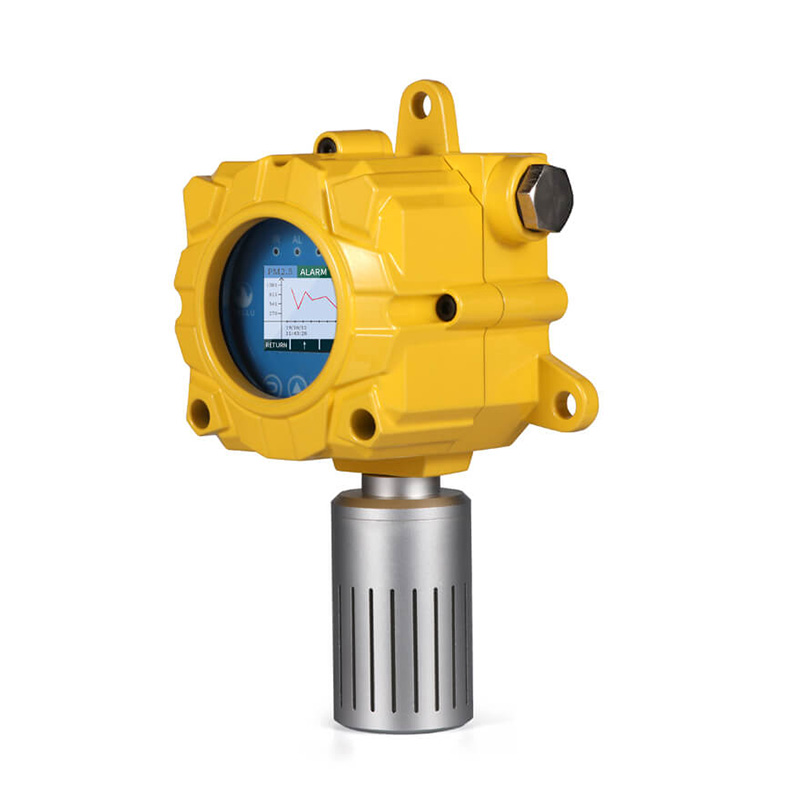

K-G60-TSP Fixed Dust Detector
K-G60-TSP intelligent dust detector is a stationary detector that can continuously detect PM2.5,PM10 concentration in the business environment.
We provide gas detector OEM/ODM service.
- Free calibration
- Lifetime maintenance
- 1-year warranty
Feature
- The detector USES laser scattering method to detect dust concentration.The concentration value of the dust on LCD display suitable for factory application should be higher than the preset alarm point to immediately start the sound and light alarm signal or drive the exhaust system;

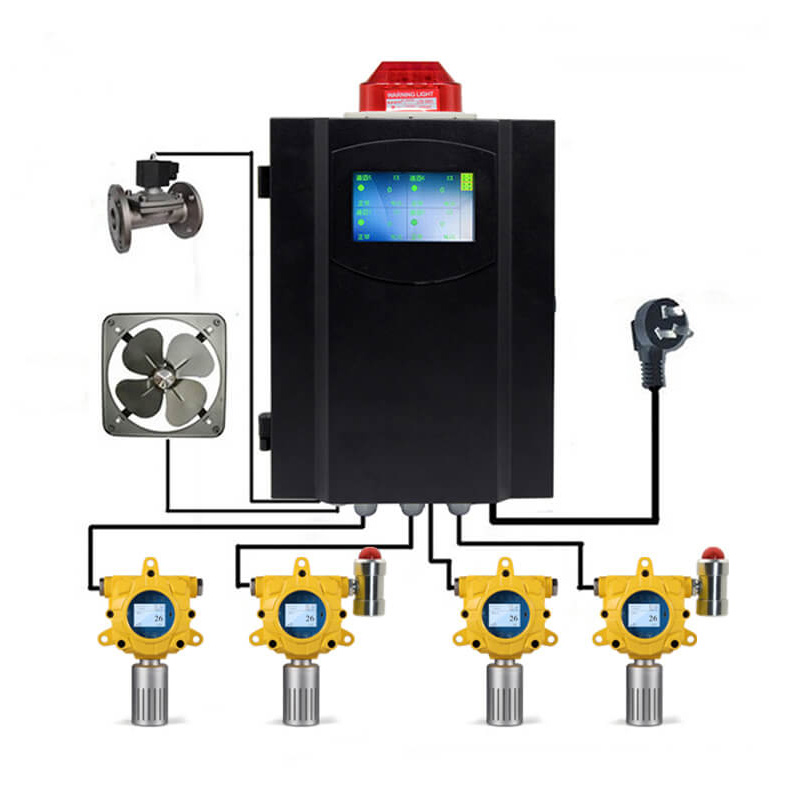

- International standard 4-20ma signal can be directly connected to the plant DCS system or PLC, and RS485 digital signal can be connected to the plant host computer.
- The detector adopts embedded micro-control technology.
- simple operation, complete functions, high reliability.
- This product is suitable for indoor dust concentration monitoring place.
Specifications
| Sensor | PM2.5 PM10 |
| Pressure | 86 ~ 106Kpa |
| Sampling method | Laser Scattering |
| T&H | -20℃-50℃, <95%RH |
| Response Time | ≤10s |
| Voltage | DC24V±15% |
| Range | (0-1000)ug/m3 (0-6000)ug/m3 |
| Display | 2.0 inch colored LCD |
| Size | 236*181*90mm |
| Precision | ≤±10%F.S |
